4K POE IP Underwater Camera for Aquaculture and Underwater Inspection Anti-Corrosion, Max 50 Meters Depth of Water - LINOVISION US Store

4K POE IP Anti-Corrosion Underwater Camera with Easy Remote Access

€599,00 EUR

Cable Length

Produc variants

-

+

4K ULTRA HD UNDERWATER INSPECTION - Presenting 8 Megapixels (3840x2160) pixels vivid video to show full details underwater; 112.7° wide view angle; Efficient bandwidth control with the advanced H.265 compression;

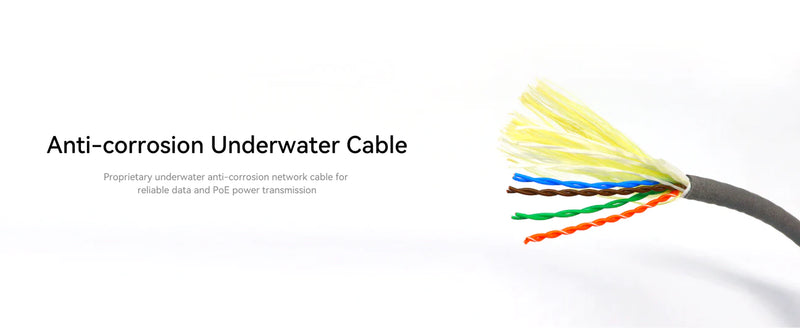

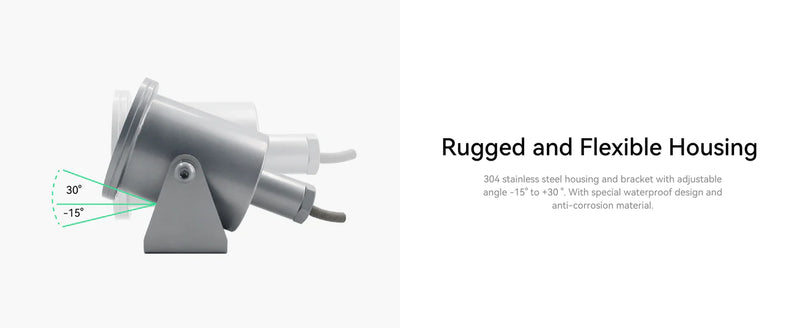

DESIGNED FOR PERMANENT UNDERWATER USE - 304 stainless steel case, IP68 waterproof design and anti-corrosion cable, designed to be used underwater permanently. The cable length can be customized upon request, 10 meters cable is provided by default.
EASY REMOTE ACCESS - Comes with intuitive WEB GUI, no plug-in or ActiveX is required; iOS & Android mobile App with Cloud access; Also provide PC based VMS software to centralized manage tens of cameras from different sites.
WHITE LIGHT ILLUMINATION - Equipped with white LED for supplement illumination under the waters; Remote On/Off control; Optional Infra-Red LED for the least interference.

Application

Suitable for Aquaculture Farms, Aquariums, Water Treatment Facilities, Reservoirs, Dams, etc.

SKU: IPC608UW-10

Datasheet Manual Video

SAME DAY SHIPPING

30 DAY RETURNS

24/7 CHINA + US GLOBAL TECH SUPPORT

OverView Key Specification Q&A Resources Reviews

Outstanding Features

Ultra HD Resolution

White LED Illumination Vision

At the core of this camera is an 8MP image sensor, which results in exceptionally sharp 4K video, realistic color representation, and get superior image quality while maintaining efficient bandwidth with the most advanced H.265 encoding algorithm.

Equipped with white LED for supplement illumination under the waters, experience the best vision under the water.

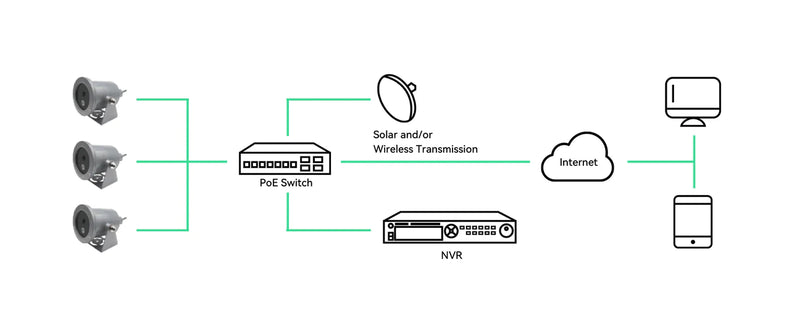

Connection Diagram

Application

Key Specification

Camera
Image Sensor	1/2.5" Progressive Scan CMOS
Min. Illumination	Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR
Shutter Speed	1/3 s to 1/100,000 s
Slow Shutter	Support
Lens	2.8 mm, horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 120°
Lens Mount	M12
Iris	F2.0
Day &Night	IR cut filter
DNR	3D DNR
Wide Dynamic Range	120dB
Compression Standard
Video Compression	Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Support
H.265 Type	Main Profile
H.265+	Support
Video Bit Rate	32 Kbps to 16 Mbps
Max. Resolution	3840 × 2160
Main Stream	50Hz: 20 fps (3840 × 2160), 25 fps (2560 × 1920, 2560 × 1440, 1920 × 1080,1280 × 720) 60Hz: 20 fps (3840 × 2160), 30 fps (2560 × 1920, 2560 × 1440,1920 × 1080, 1280 × 720)
Sub Stream	50Hz: 25fps (640 × 360, 352 × 288) 60Hz: 30fps (640 × 360, 352 × 240)
Third Stream	50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)
Image Enhancement	BLC/3D DNR
Image Settings	Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software
ROI (Region of Interest)	Support 1 fixed region for mainstream and sub stream separately
Day/Night Switch	Auto/Scheduled
Network
Network Storage	Support microSD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD full, HDD error
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE,NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Standard ONVIF	(PROFILE S, PROFILE G), PSIA, CGI, ISAPI
General Function	One‐key Reset, Anti‐Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter
Interface
Communication Interface	1 RJ45 10M/100M self‐adaptive Ethernet port
Smart Feature‐set
Behavior Analysis	Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Line Crossing Detection	Cross a pre‐defined virtual line, up to 1 pre‐defined virtual lines supported
Intrusion Detection	Enter and loiter in a pre‐defined virtual region, up to 1 pre‐defined virtual regions
Object Removal Detection	Supported
Unattended Baggage Detection	Objects left over in the pre‐defined region such as the baggage, purse, dangerous materials
General
Operating Conditions	‐30 °C to +60 °C (‐22 °F to +140 °F), Humidity 95% or less (non‐condensing)
Power Supply	PoE(802.3af, class 3),7.5W
IR Range	Up to 30 m
Protection Level	IP67
Dimensions (L × W × H)	100×90×100mm (3.9”×3.5”×3.9”)
Weight	1.95kg (4.3lb)
Material	304 stainless steel, anti-corrosion
Working Environment	-30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing)
waterproof capability	up to 50 meters (165 feet) of fresh or saltwater resistance for long-term underwater deployment

Q&A

Q.Does this camera work with an NVR recorder?

A.

Yes. The camera works with NVR recorders via ONVIF protocol, so the camera video will be stored in NVR’s hard drives. We also provide Ultra Package that includes NVR and hard drive.

Q.Can I view this camera from VLC player?

A.

Yes, our cameras provide RTSP stream and it works with VLC player.

Q.Will this camera work with Avigilon video surveillance software?

A.

Yes, our cameras support ONVIF protocol and it can be working with 3rd party video management software.

Q.How to power on this camera?

A.

All of our underwater cameras are POE IP cameras. They are powered by PoE (Power over Ethernet) injector/switch

Q.How to remote monitor video from this underwater camera?

A.

Our underwater cameras support remote live view and playback. Here are several options: Via WEB browser from a remote computer. It is compatible to popular web browers, like Chrome/Safari/IE/Edge, no plug-in or ActiveX is required. Via Client software from Windows OS or Mac OS computer. The Client software can be downloaded from our website and free of charge Via Mobile App from iOS or Android smart phone.

Q.Does this camera support live streaming or broadcasting?

A.

Yes, when working with live streaming device. The camera provides RTSP stream and can be connected to live streaming device and then stream on YouTube or Facebook.

Q.Does this camera support Wi-Fi network?

A.

No, the camera does not support Wi-Fi connection.

Q.How can I deploy this underwater camera in sites without power and wired network?

A.

No worries. Linovision provides professional solar power system and 4G LTE wireless transmission system. For temporary deployment, you can also use our handheld terminal, its built-in battery can supply PoE power to underwater camera temporary.

Q.Can I deploy this camera in salt water aquarium or ocean aquaculture farms?

A.

Yes. Underwater cameras come with 304 stainless steel with anti-corrosion coating. It is no problem to use this camera in salt water, ocean, or oceanside applications.

Q.How to reset the camera if forget the login password of the camera?

A.

Please feel free to contact us or submit a support ticket on our website (https://support.linovision.com), our technicians will assist you step by step to solve the problem.

Q.Does optional infrared come with this camera?

A.

This camera comes with a white light. If you need an infrared light, please let us know when you place the order, and we can customize for you. The general customization time is 5-10 days. If it is used in water, we recommend using white light, the effect is better than infrared light.

Resources

Datasheet(1)

User Manual(1)

IPC608UW Datasheet

IPC608UW User Manual
