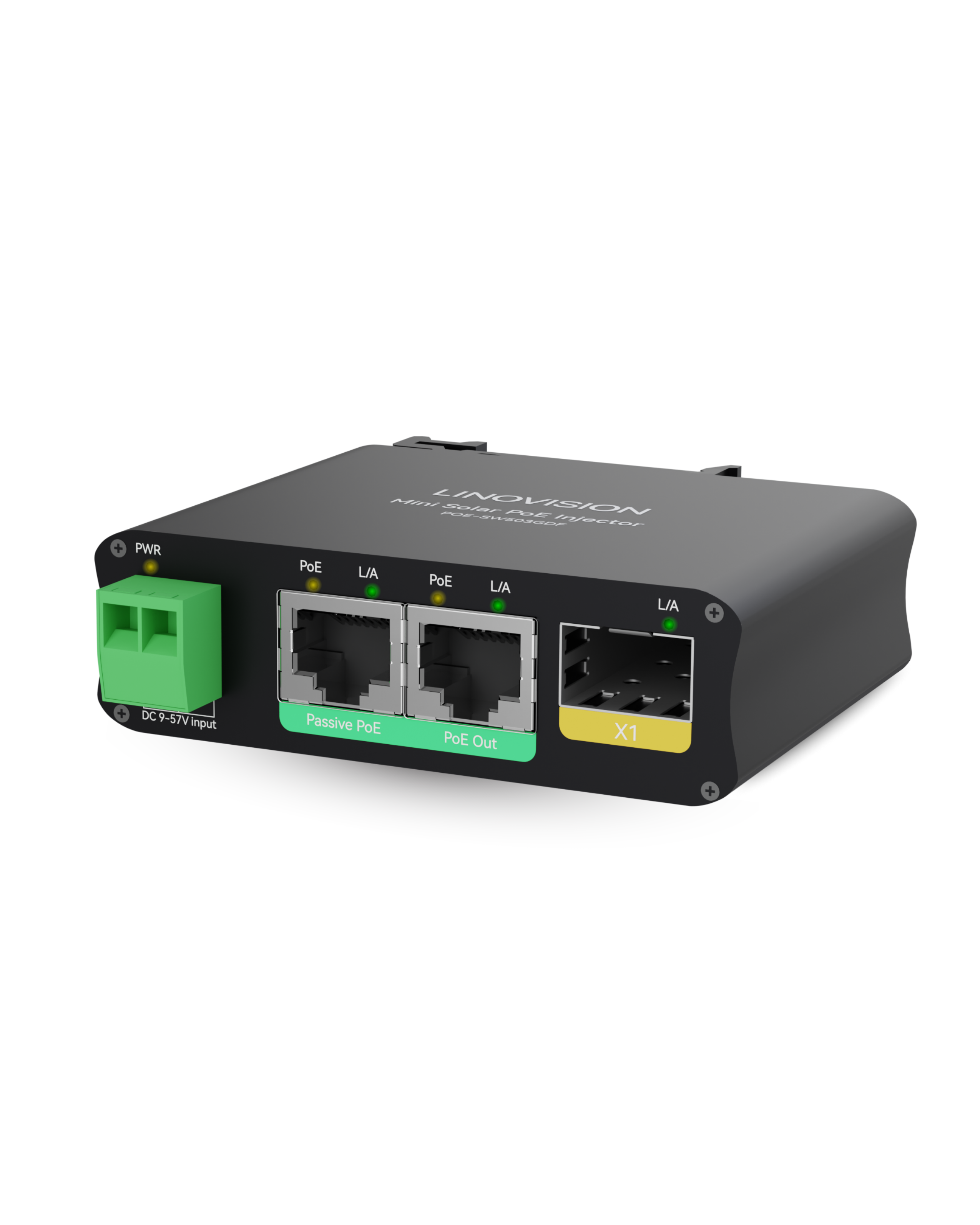

2 Ports Mini Solar PoE Switch with Passive PoE Output and SFP Uplink
€99,00 EUR
In Stock Request Volume Pricing
In Stock Request Volume Pricing
x
Request for Volume Pricing Form
This field is required.
This field is required.
This field is required.
This field is required.
Please enter an integer greater than 0.
This field is required.
This field is required.
SKU: POE-SW503GDF
Thank you for inquiring. Our sales team will be in touch with you shortly!
Submission failed. Please try again.
Price include import duties and VAT. Shipping and Duty Policy
-

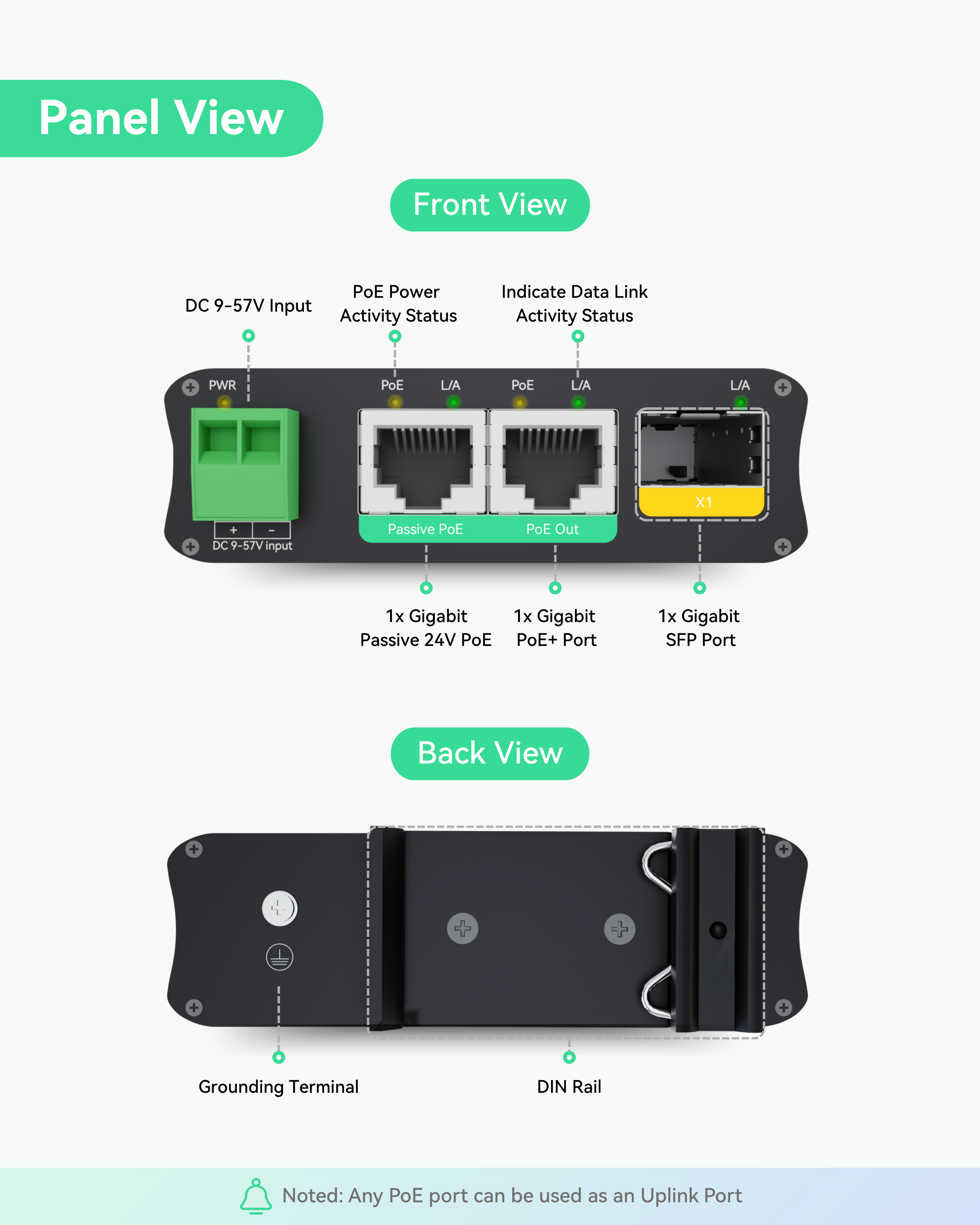

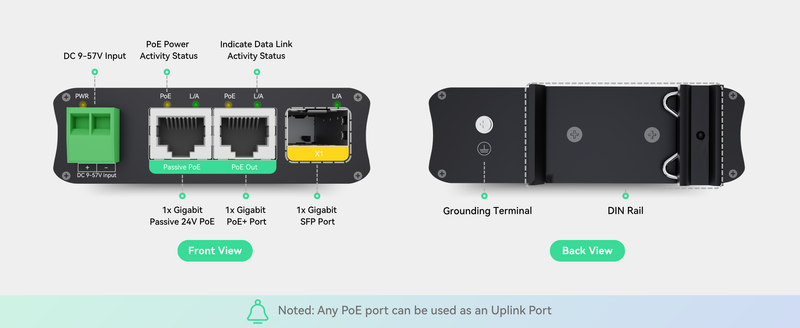

2 Ports Full Gigabit PoE+ Switch - with 1x IEEE802.3af/at PoE Port, 1xPassive PoE port and 1x Gigabit SFP slot (can also use SFP-GE-RJ45 to convert the SFP port to RJ45 port).

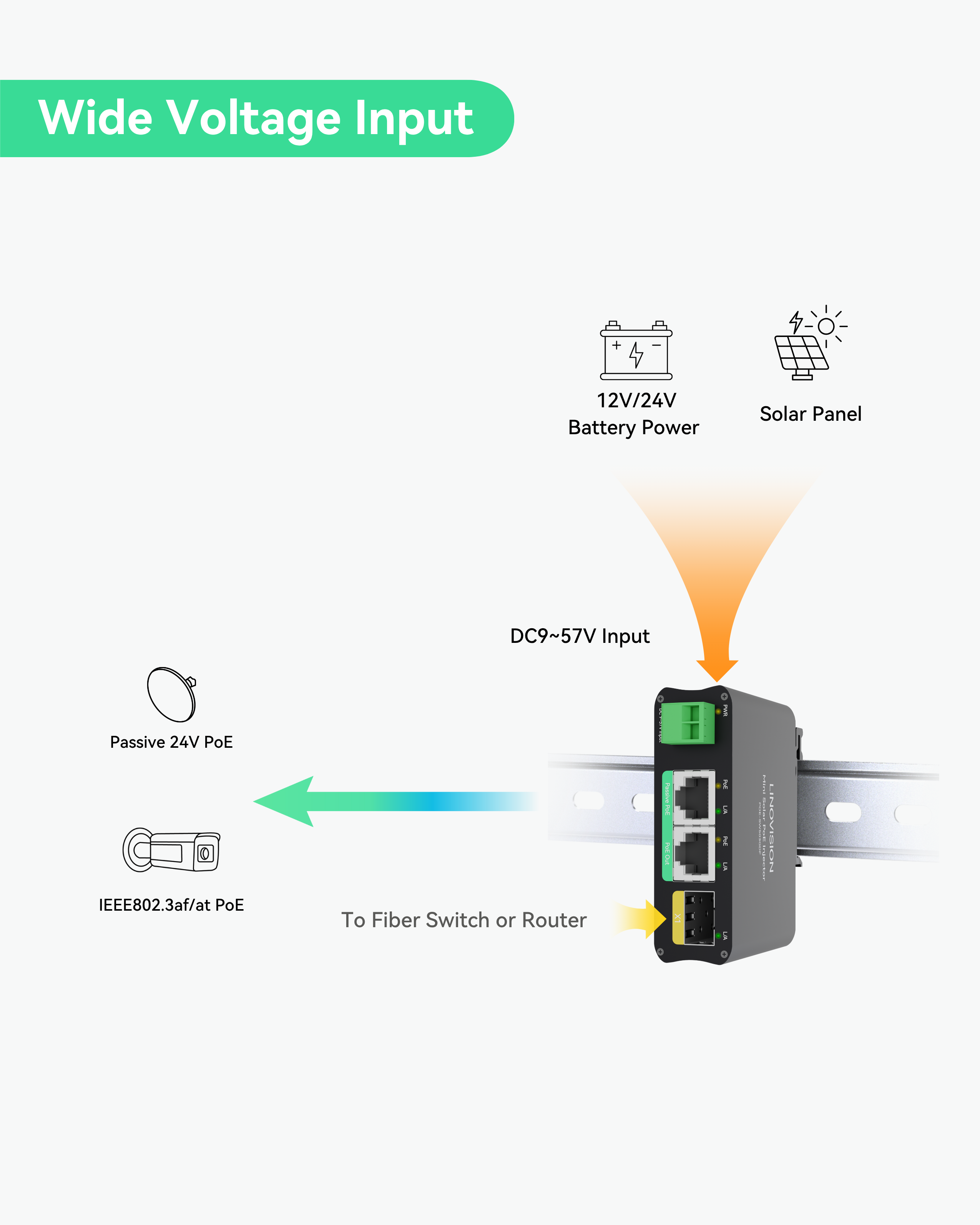

- DC 9～57V Input - Featuring built-in voltage booster, works directly with DC 12V or DC 24V solar battery systems, and outputs standard 48V PoE for regular PoE cameras, no extra DC-DC converter is required.
-

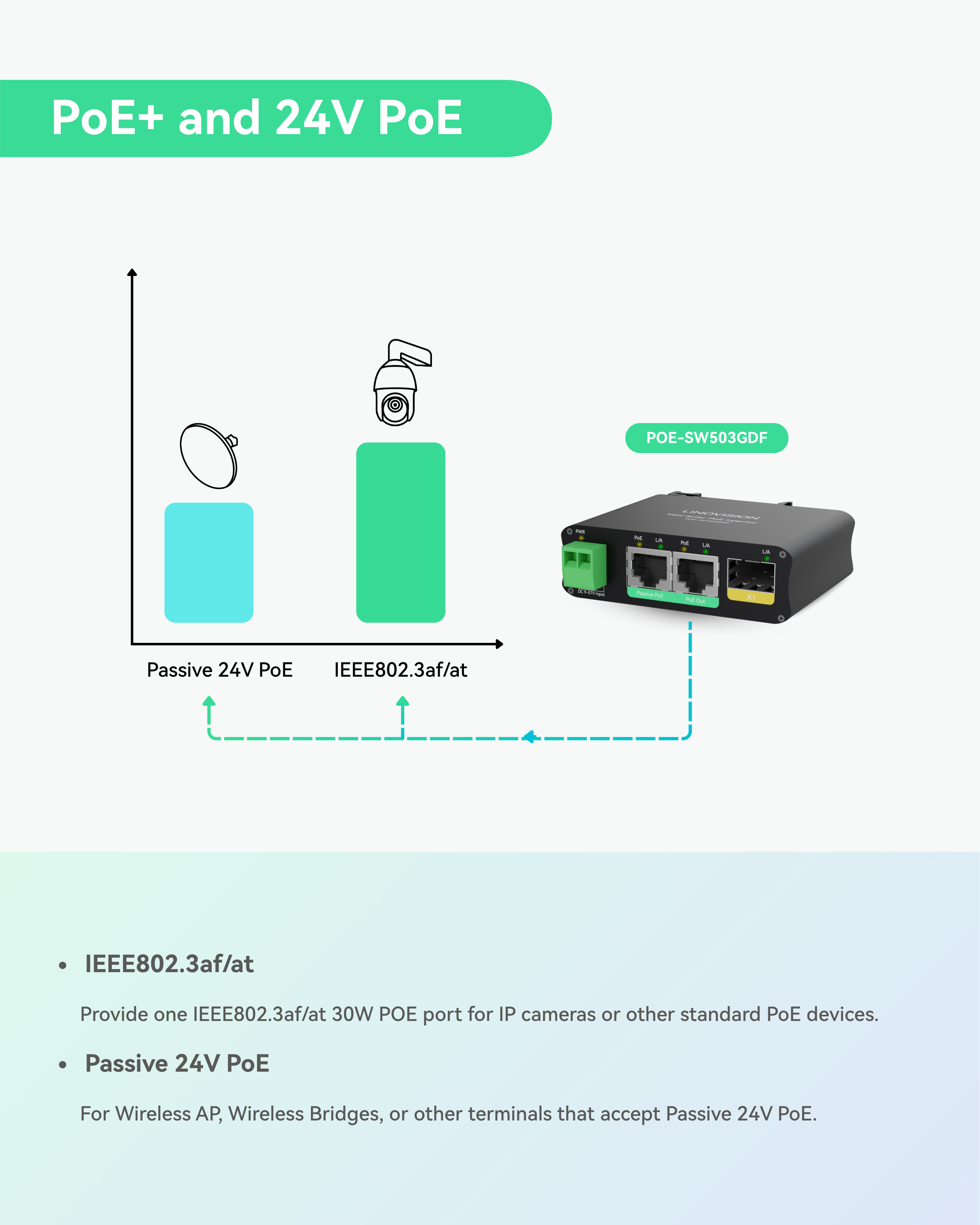

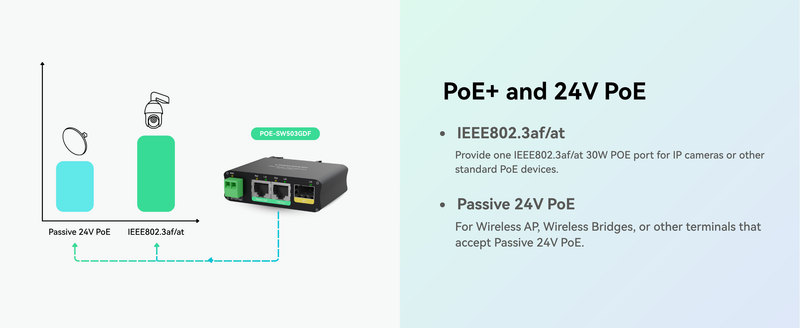

PASSIVE 24V PoE Output - To connect Wireless AP, Wireless Bridges, or other terminals that accept Passive 24V PoE. No extra PoE injector needed. PoE Pins 4/5(+), 7/8(-).
-

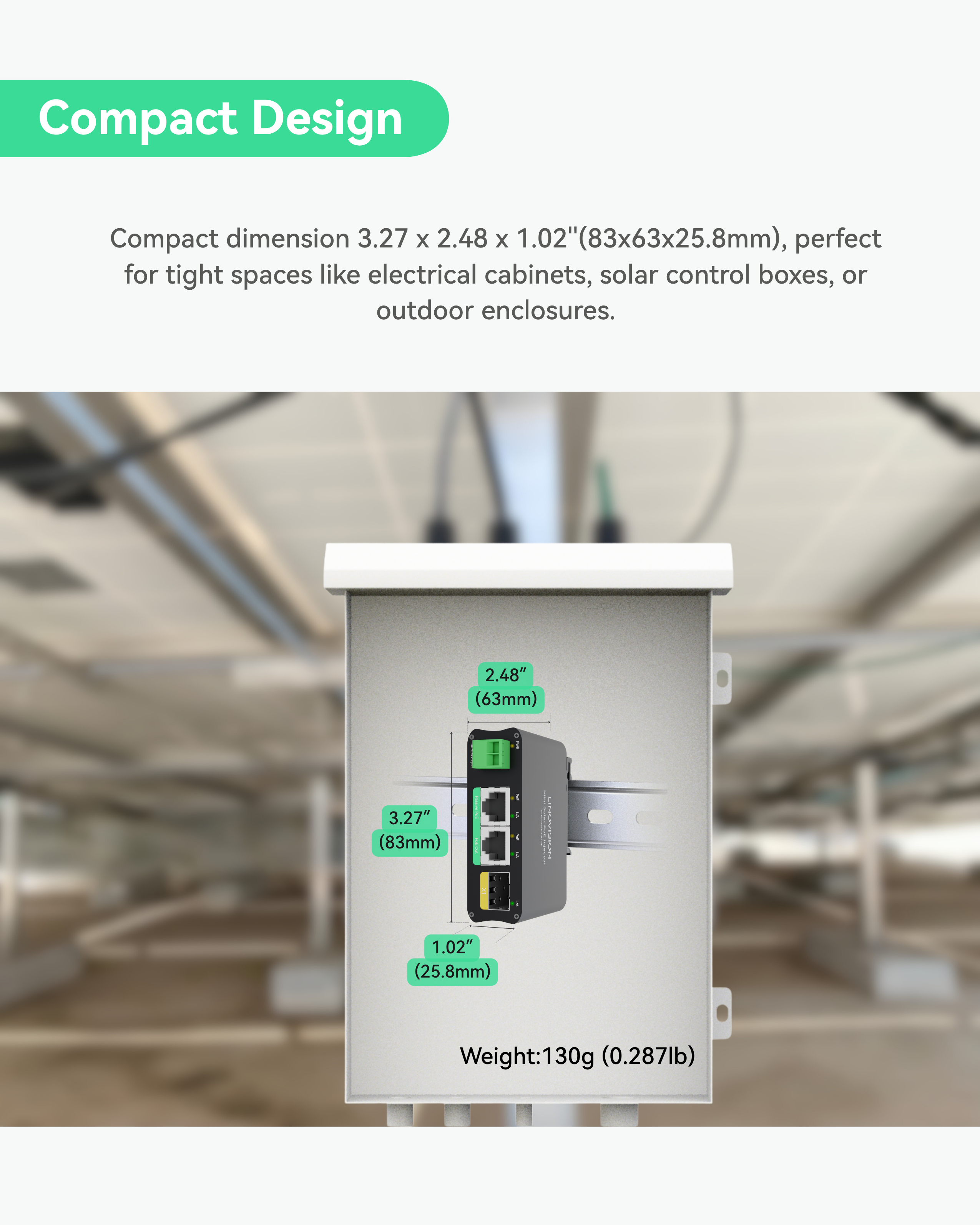

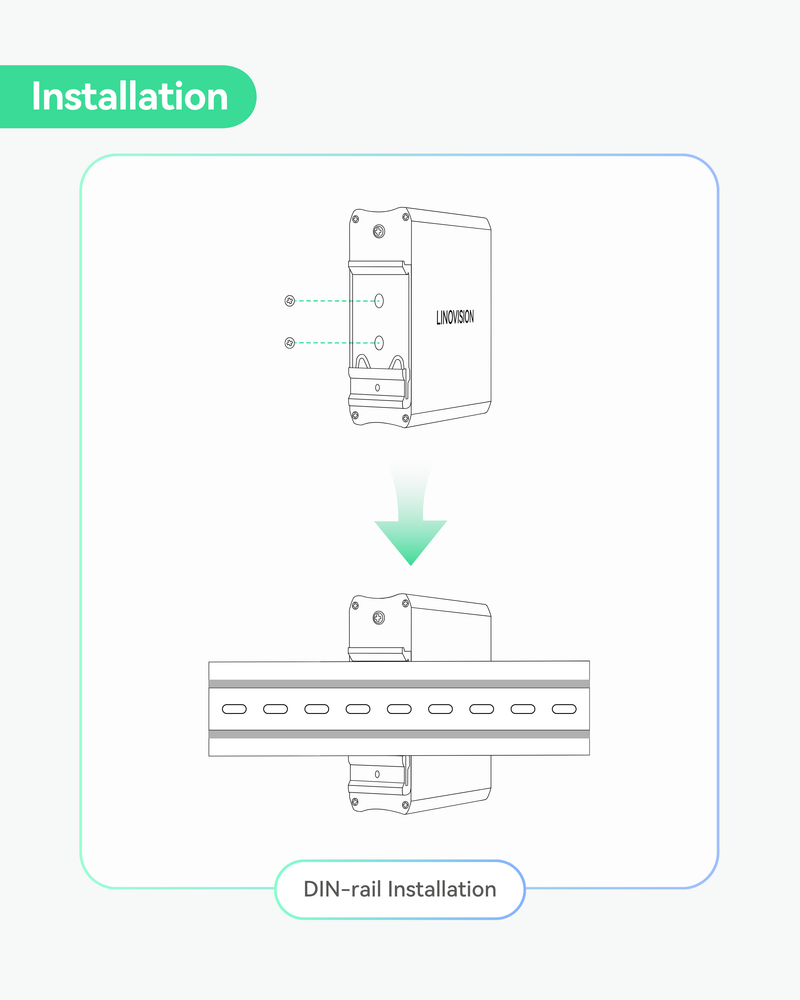

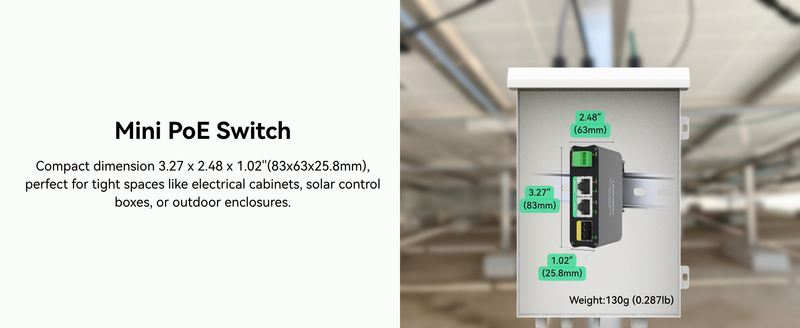

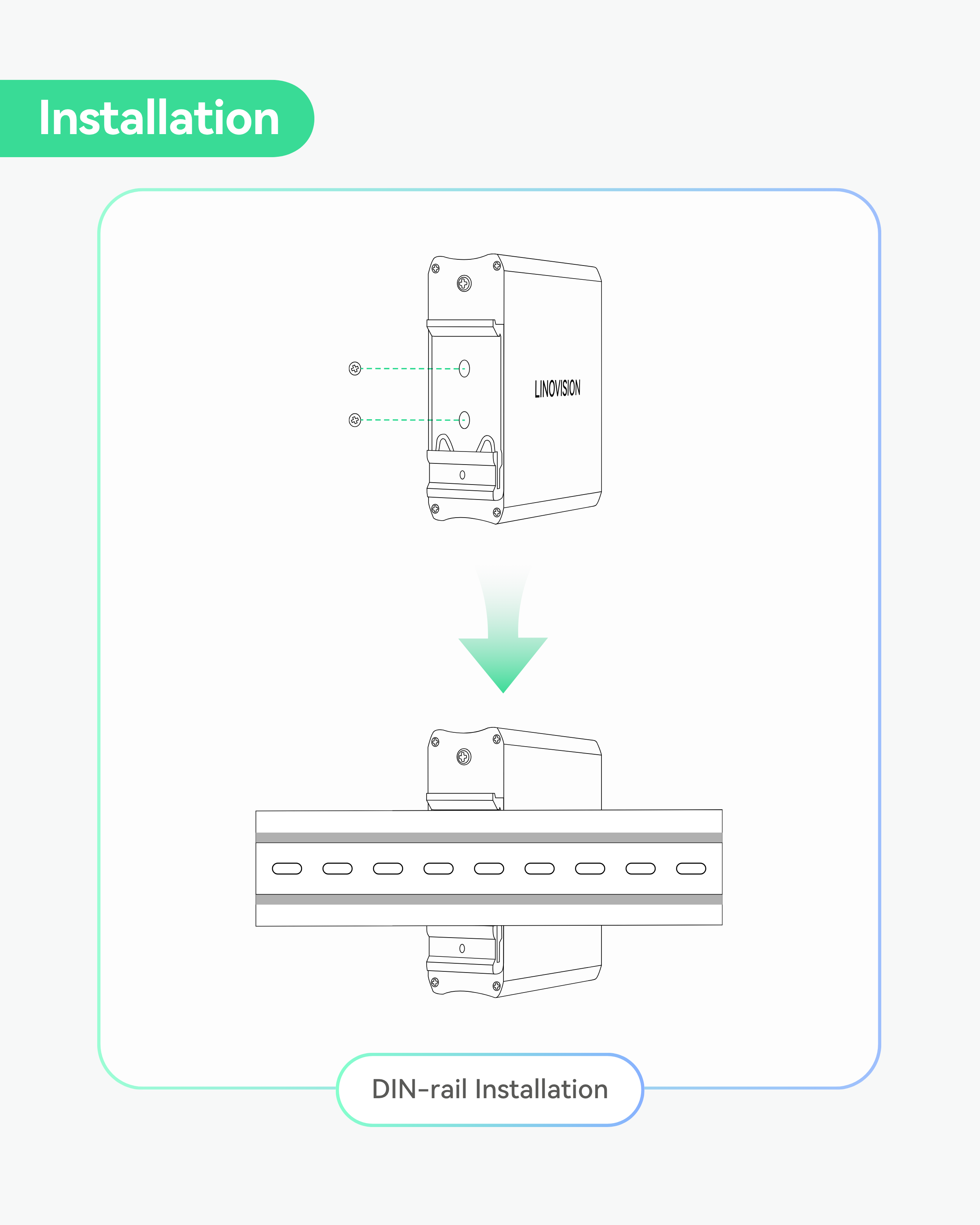

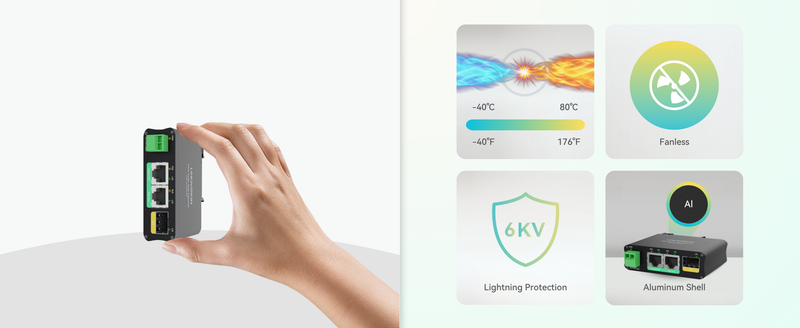

Compact Design: Full metal design, Din Rail Mount, compact dimension 3.27 x 2.48 x 1.02"(83x63x25.8mm), perfect for tight spaces like electrical cabinets, solar control boxes, or outdoor enclosures.
-

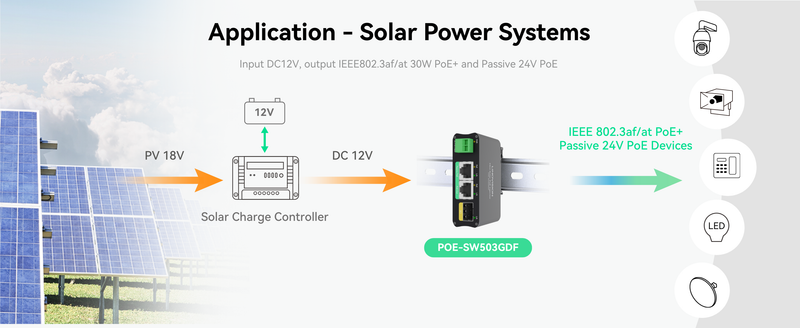

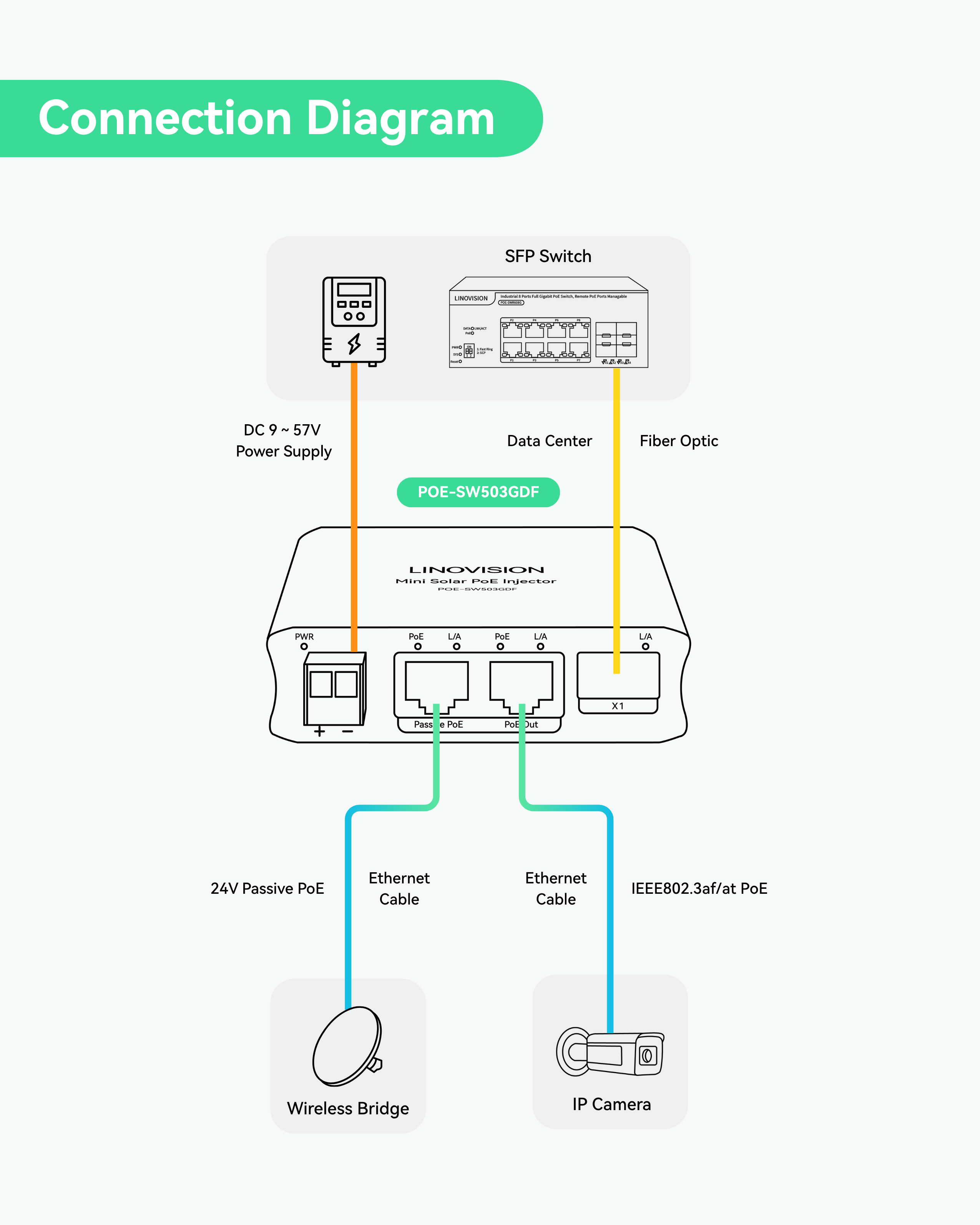

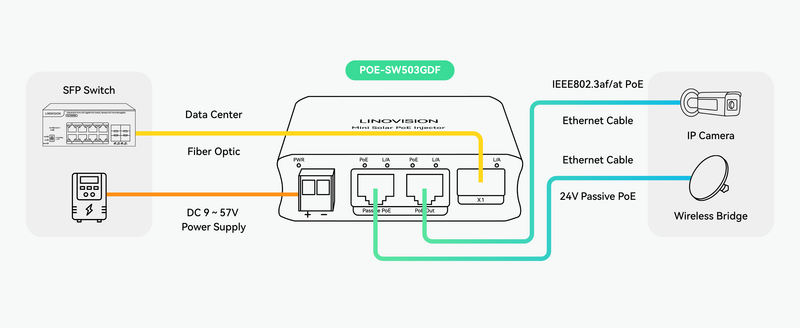

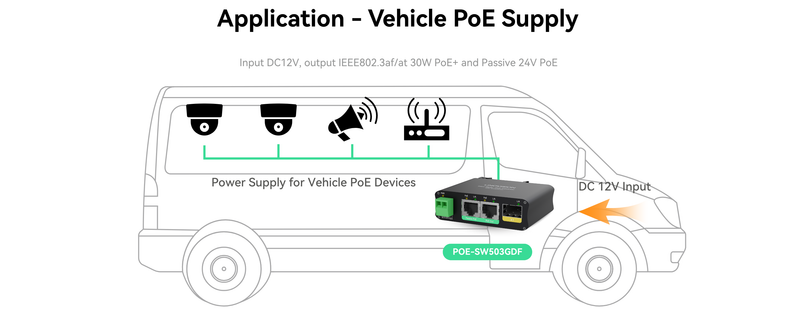

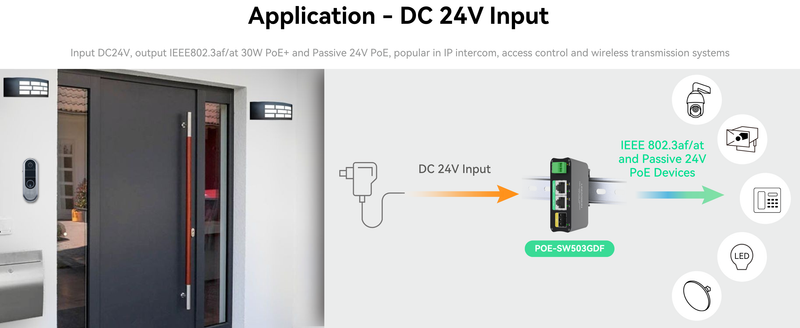

APPLICATIONS: Ideal for Solar power camera system (DC12V/DC18V/DC36V input), RV/Vehicle/Truck/Bus system (DC12V/24V input), VoIP/Access control/Robotic Systems (DC24V/DC48V input), Farm Security or remote surveillance applications.
SKU: POE-SW503GDF
