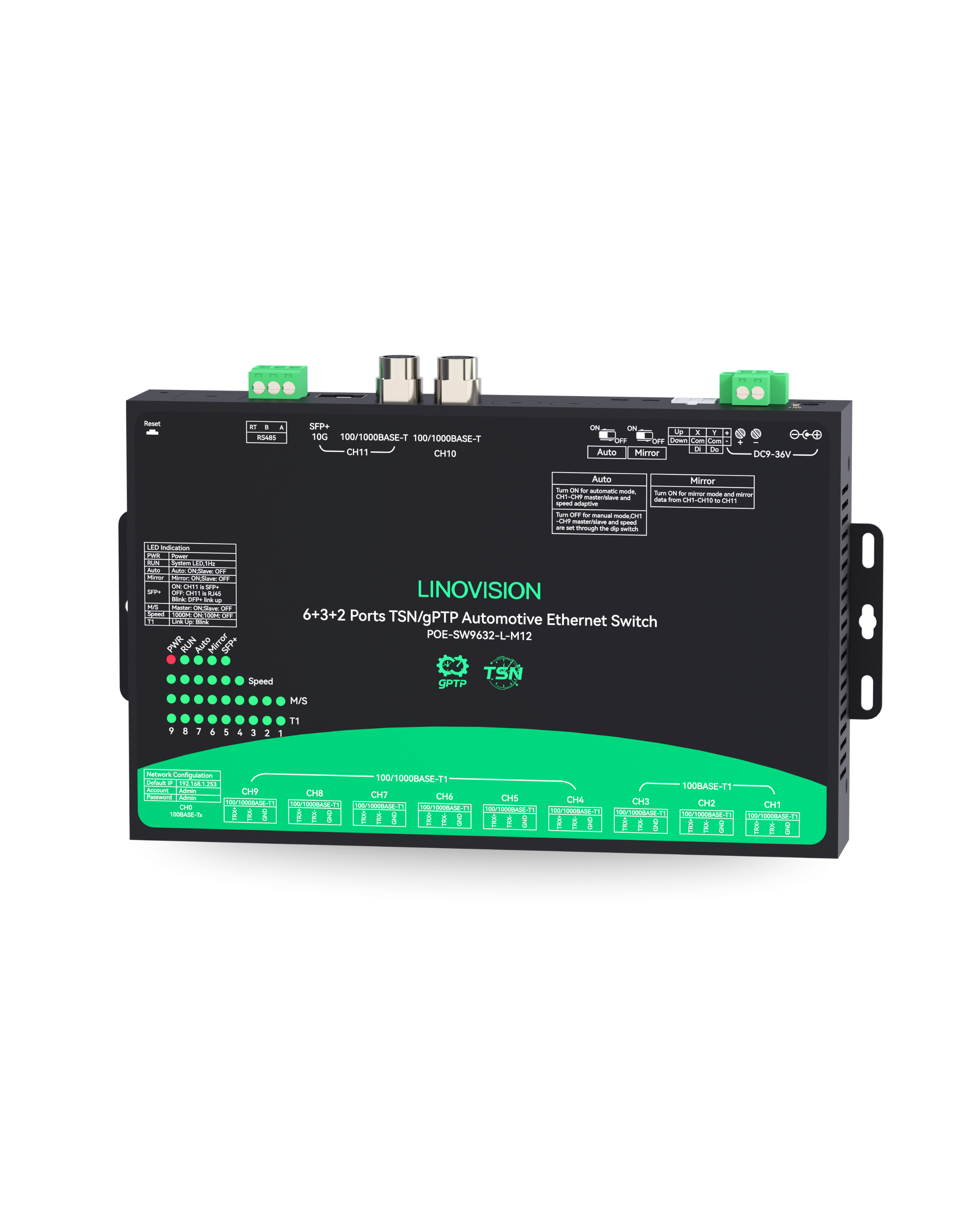

Automotive Ethernet switch with TSN and IEEE 802.1AS gPTP support, H-MTD 100/1000BASE-T1 ports, M12 Gigabit Ethernet interfaces

€1.500,00 EUR
In Stock Request Volume Pricing

x

Request for Volume Pricing Form

Name

This field is required.

E-Mail

This field is required.

Company

This field is required.

Phone

This field is required.

Quantity

Please enter an integer greater than 0.

Your target price

This field is required.

Notes

This field is required.

SKU: POE-SW9632-L-M12

Thank you for inquiring. Our sales team will be in touch with you shortly!

Submission failed. Please try again.

Price not include import duties and VAT. Shipping and Duty Policy

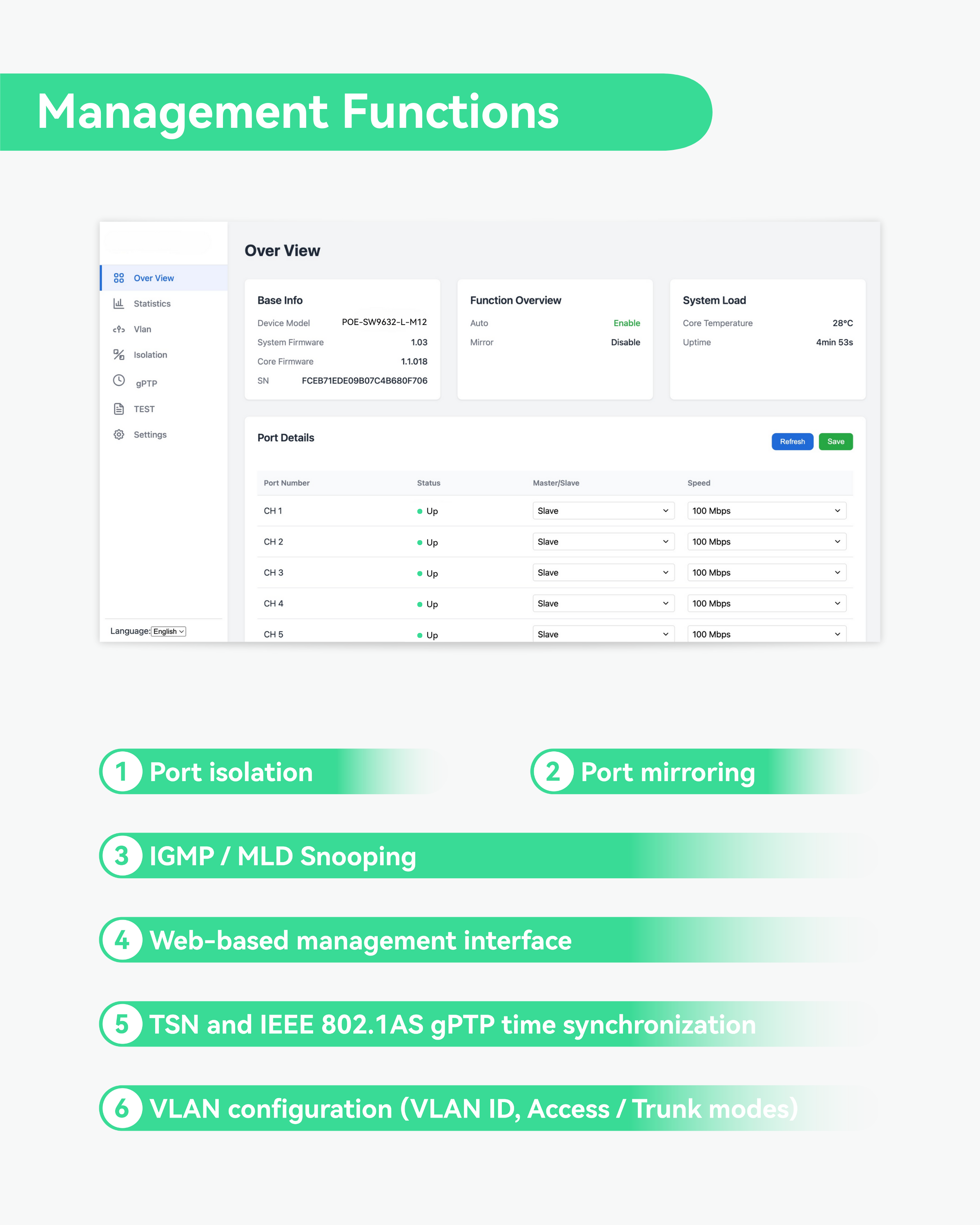

Automotive Ethernet Test Switch - Automotive Ethernet test switch for automotive Ethernet development, validation, and production testing, supporting Web-Based managed functions for controlled test networks.

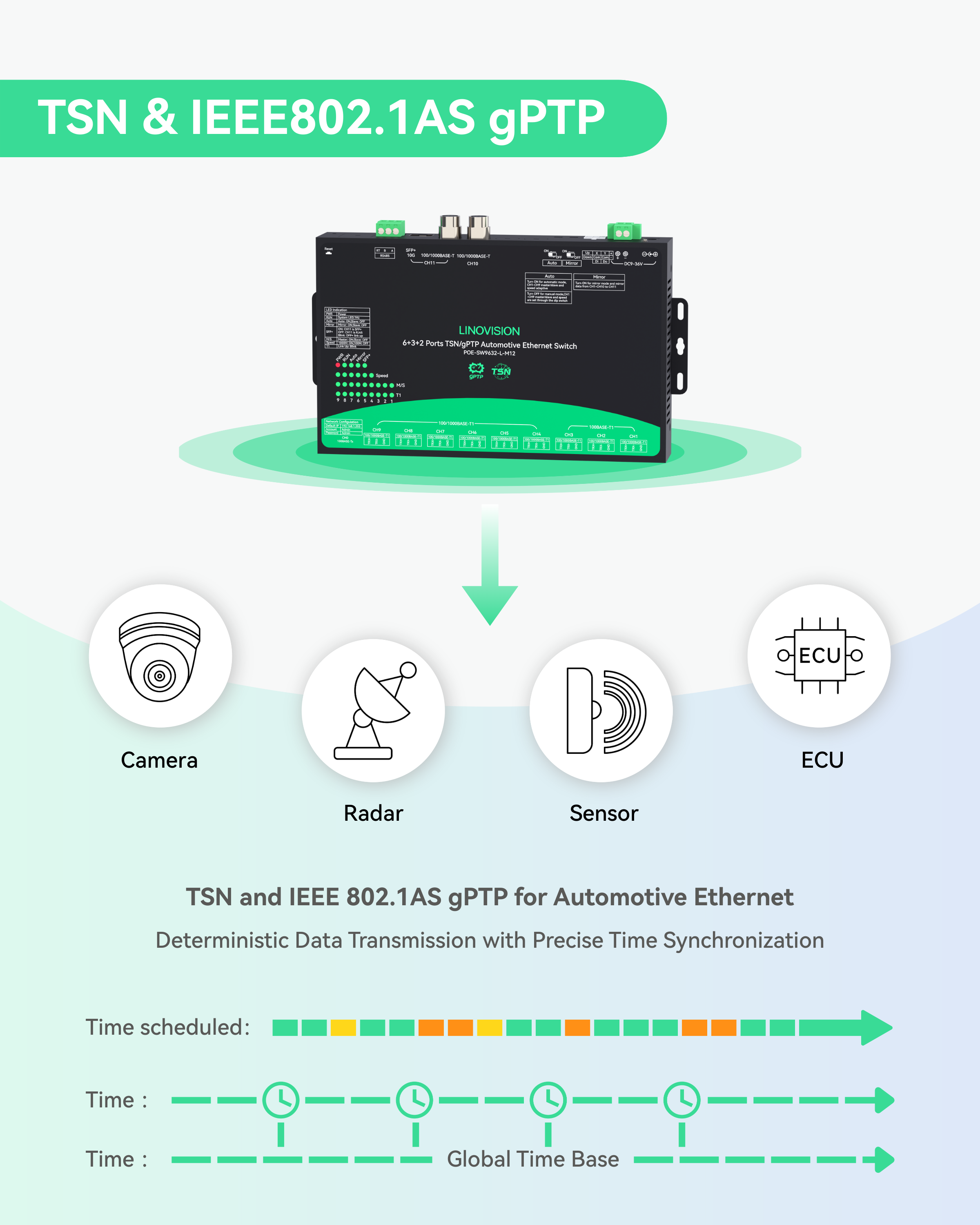

TSN and IEEE 802.1AS gPTP Support - Support for Time-Sensitive Networking (TSN) and IEEE 802.1AS gPTP to enable deterministic data transmission and precise time synchronization in automotive Ethernet test networks.

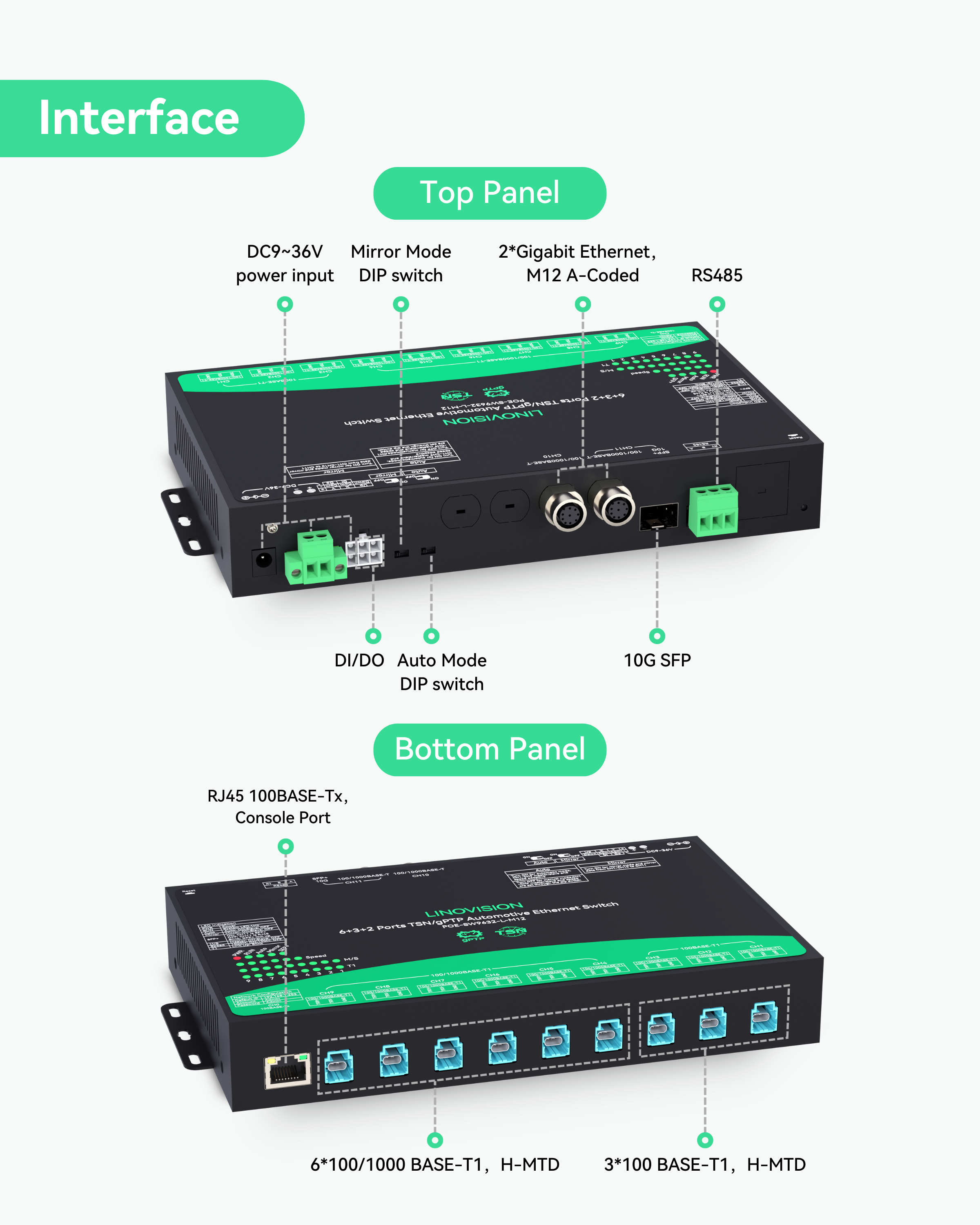

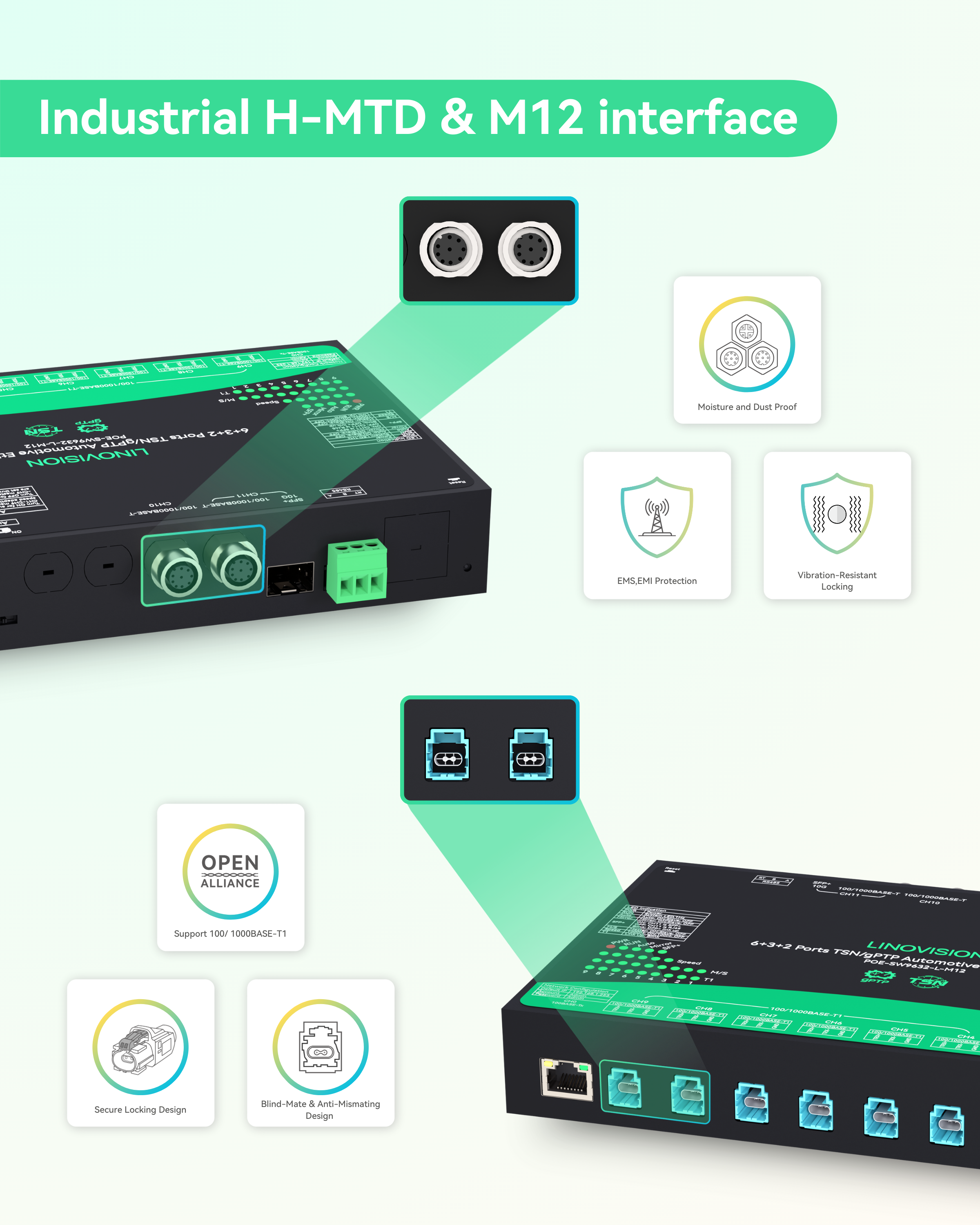

BASE-T1 Automotive Ethernet Connectivity - 3×100BASE-T1 and 6×100/1000BASE-T1 ports with H-MTD connectors, featuring automatic master/slave role and speed negotiation for simplified multi-ECU and sensor testing.

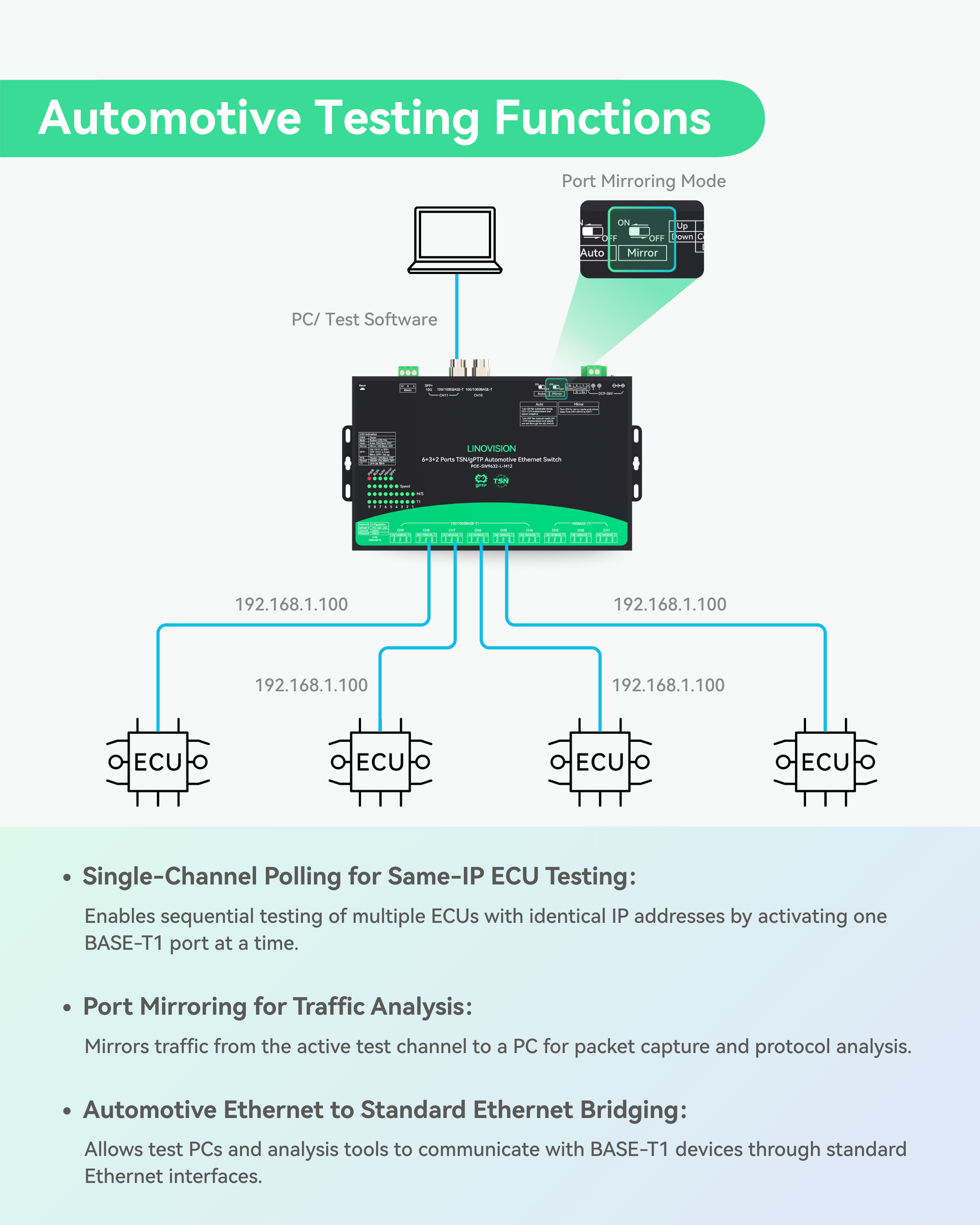

Automotive Test Functions - Single-channel polling for testing multiple ECUs with the same IP address, combined with port mirroring for traffic monitoring and packet capture.

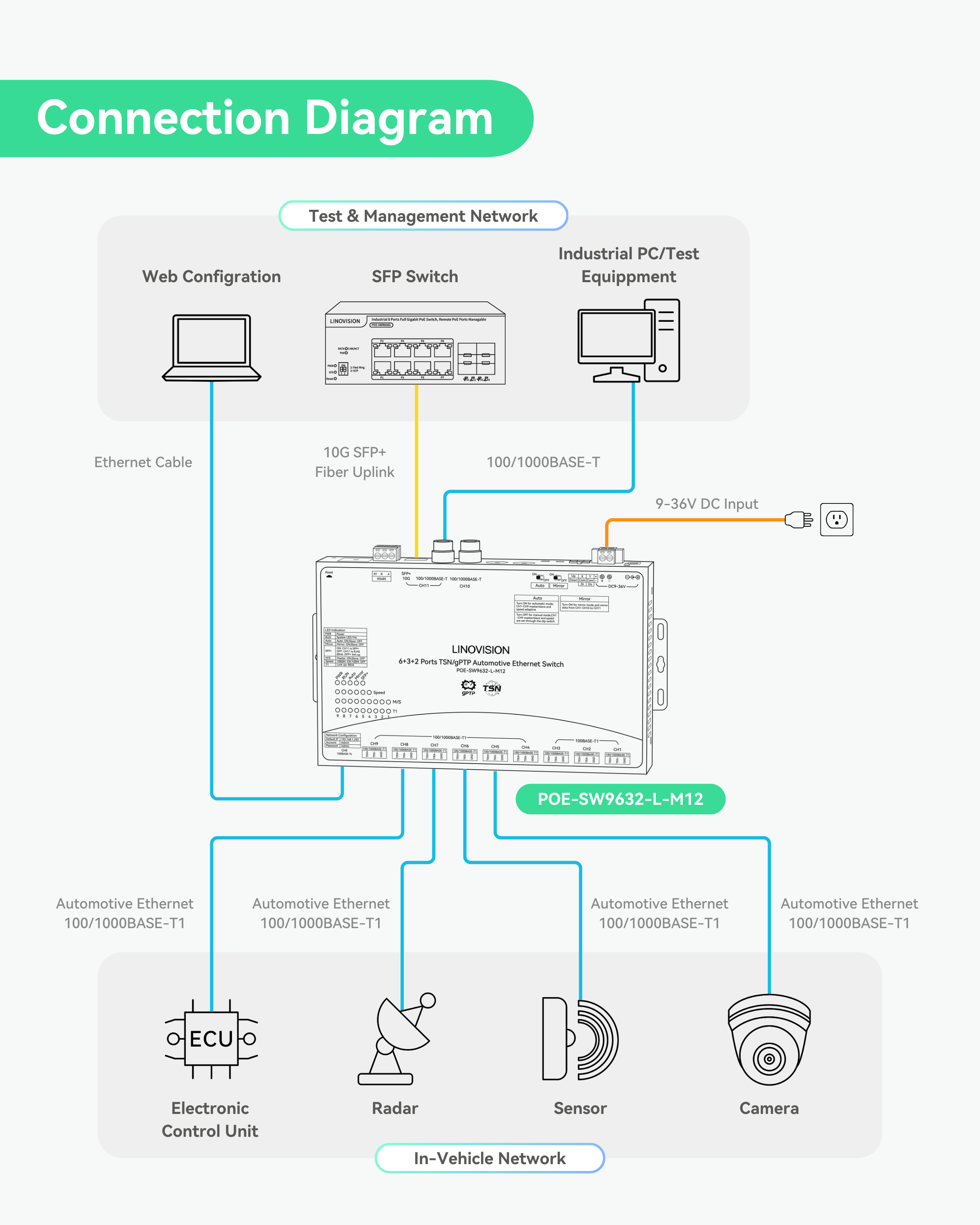

Gigabit Ethernet and 10G SFP+ Interfaces - Two M12 Gigabit Ethernet ports and one 10G SFP+ uplink enable connection to test PCs and data logging systems, allowing direct communication with BASE-T1 automotive devices.
Integrated DI / DO and RS485 Interfaces - Integrated DI / DO and RS485 interfaces for basic control, status signaling, and serial communication with test fixtures and external devices.
Industrial-Grade Design - Industrial-grade design with 9–36V wide voltage input, IP40 protection, –40°C to +85°C operating temperature, and vibration compliance with ISO 16750-3:2023, suitable for laboratory, production line, and automotive test environments.
