Industrial EtherCAT Slave I/O Module with Isolated 16-ch Digital Output

€340,00 EUR
In Stock Request Volume Pricing

x

Request for Volume Pricing Form

Name

This field is required.

E-Mail

This field is required.

Company

This field is required.

Phone

This field is required.

Quantity

Please enter an integer greater than 0.

Your target price

This field is required.

Notes

This field is required.

SKU: IECS-1116-DO

Thank you for inquiring. Our sales team will be in touch with you shortly!

Submission failed. Please try again.

Price not include import duties and VAT. Shipping and Duty Policy

Built-in isolated 16 digital outputs
2 RJ45 bus interfaces
LED indicators for the input status
Removable terminal block connector
9 ~ 48V DC wide input voltage range and high output current (700 mA/ch)
Supports EtherCAT distributed clock (DC) mode and SyncManager mode
EtherCAT conformance test tool verifie

SKU: IECS-1116-DO

SHIPPING FROM CHINA WAREHOUSE, DELIVERY TIME 5-7 DAYS

30 DAY RETURNS

24/7 CHINA + US GLOBAL TECH SUPPORT

Frequently bought with

Industrial EtherCAT Slave I/O Module with Isolated 16-ch Digital Output

€340,00 EUR

-

+

Industrial EtherCAT Slave I/O Module with Isolated 16-ch Digital Input

€345,00 EUR

-

+

The bundle

This Item

x1

+

This item

Industrial EtherCAT Slave I/O Module with Isolated 16-ch Digital Output

€340,00 EUR

-

+

Frequently bought with

Industrial EtherCAT Slave I/O Module with Isolated 16-ch Digital Input

€345,00 EUR

-

+

PLANET Industrial L3 Managed 8-Port 802.3bt PoE++ Switch with 2x 2.5G and 2x 10G SFP+ Uplink, Total PoE Budget 360W

€959,00 EUR

PLANET Industrial IP67-rated 6-Port 10/100/1000T M12 Managed Ethernet Switch, EN50155 and EN50121-4 Railway certified

€820,00 EUR

PLANET Industrial L2+ Managed 4-Port Timing Sensitive Network (TSN) Switch, support 802.1AS and 1588v2 Precision Time Protocol (PTP)

€825,00 EUR

OverView Key Specification Comparison Q&A Resource Reviews

Powering the Digital Transformation with EtherCAT

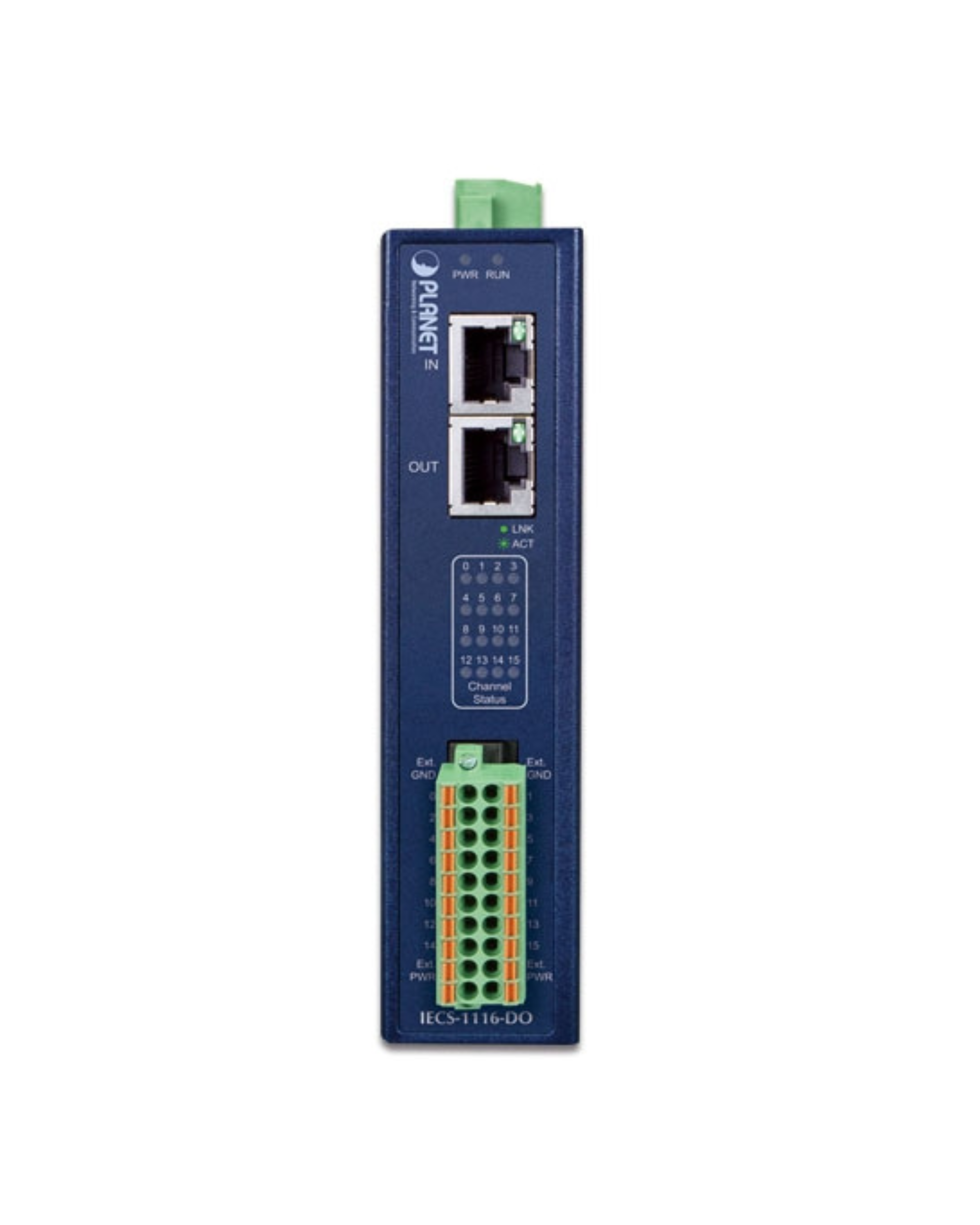

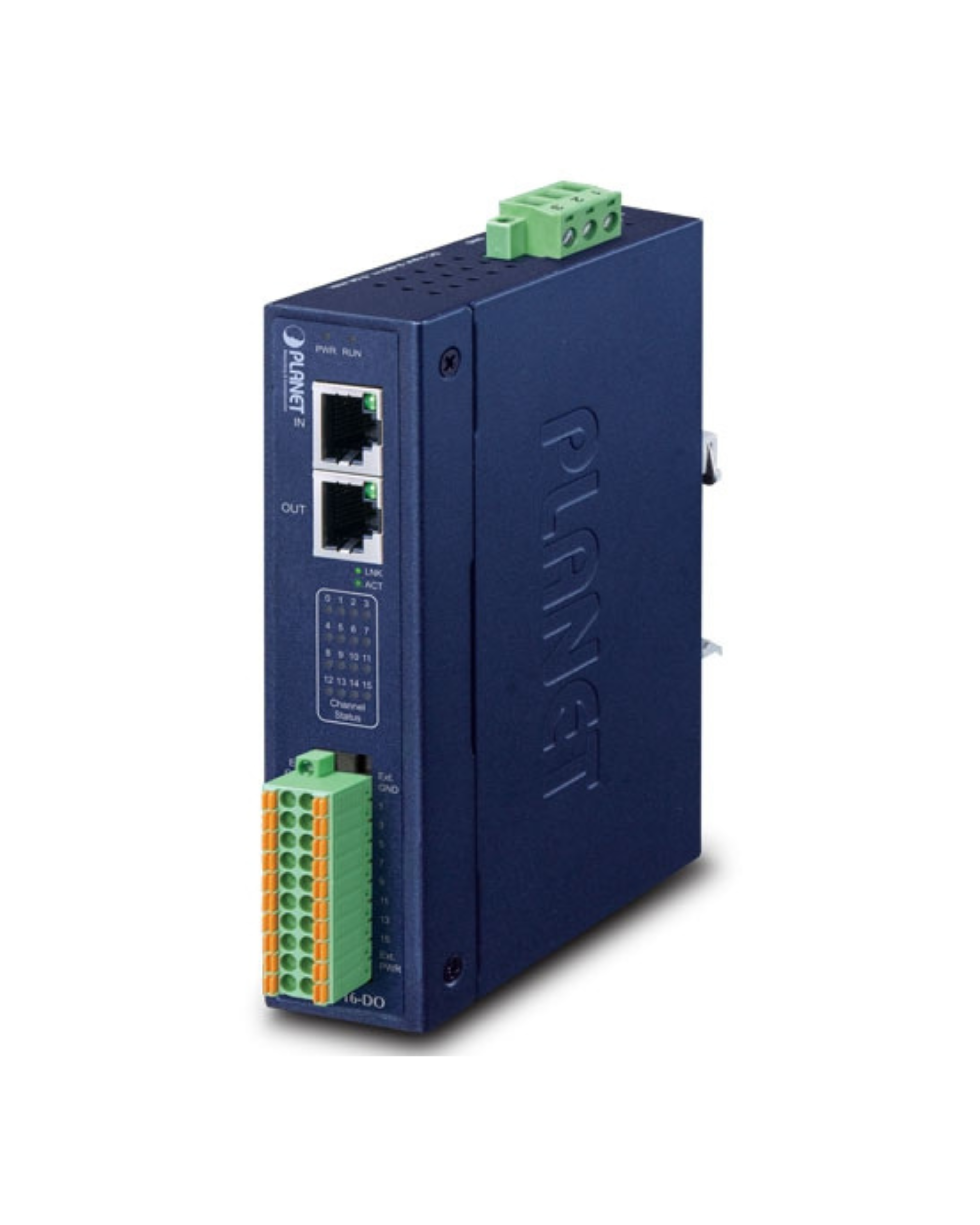

PLANET IECS-1116-DO is an industrial EtherCAT slave I/O module equipped with the EtherCAT protocol for today's distributed industrial applications. The IECS-1116-DO provides high-density digital output channels and is protected with 3750 VDC isolation. Its compact size and DIN-rail mounting make installation in a cabinet easy. Pluggable terminal blocks and LED indicator help users to maintain and set up their system.

Flexible Installation

The IECS-1116-DO is an ideal high-speed distributed system solution which provides quick installation, real-time connection status monitoring, and wide-ranging power input and operating temperature to improve work efficiency, making them suitable for the harsh environment. Besides, the module comes with 2 10/100BASE-TX RJ45 ports. Through the EtherCAT technology, a network of up to 65,535 devices can be supported without the limitation of the type of topology -- line, bus, tree, star or any arrangement -- being used.

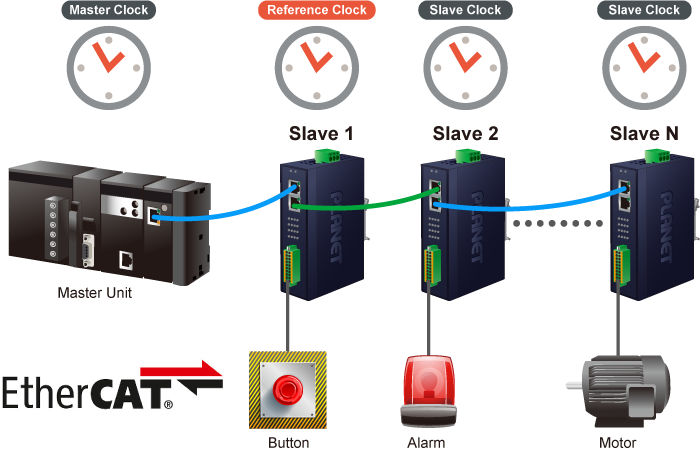

Synchronization

An EtherCAT slave is an electronic device that carries out cyclical sequences of calculations and/or data copying tasks at a certain interval (cycle). The EtherCAT slave working cycle (e.g. in the range of a few µs up to several ms) can be derived from different sources. EtherCAT node can measure time difference between leaving and returning frame. With distributed clocks, EtherCAT can realize a precise synchronization time of <1us between each slave module.

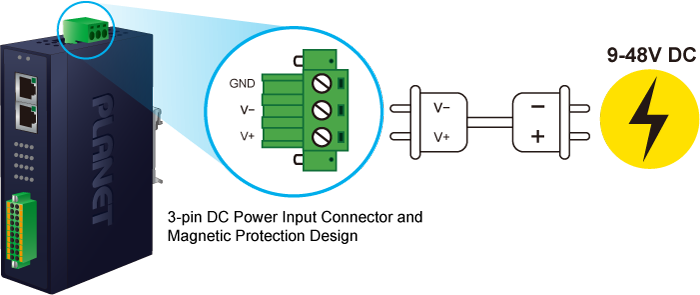

Convenient and Reliable Power System

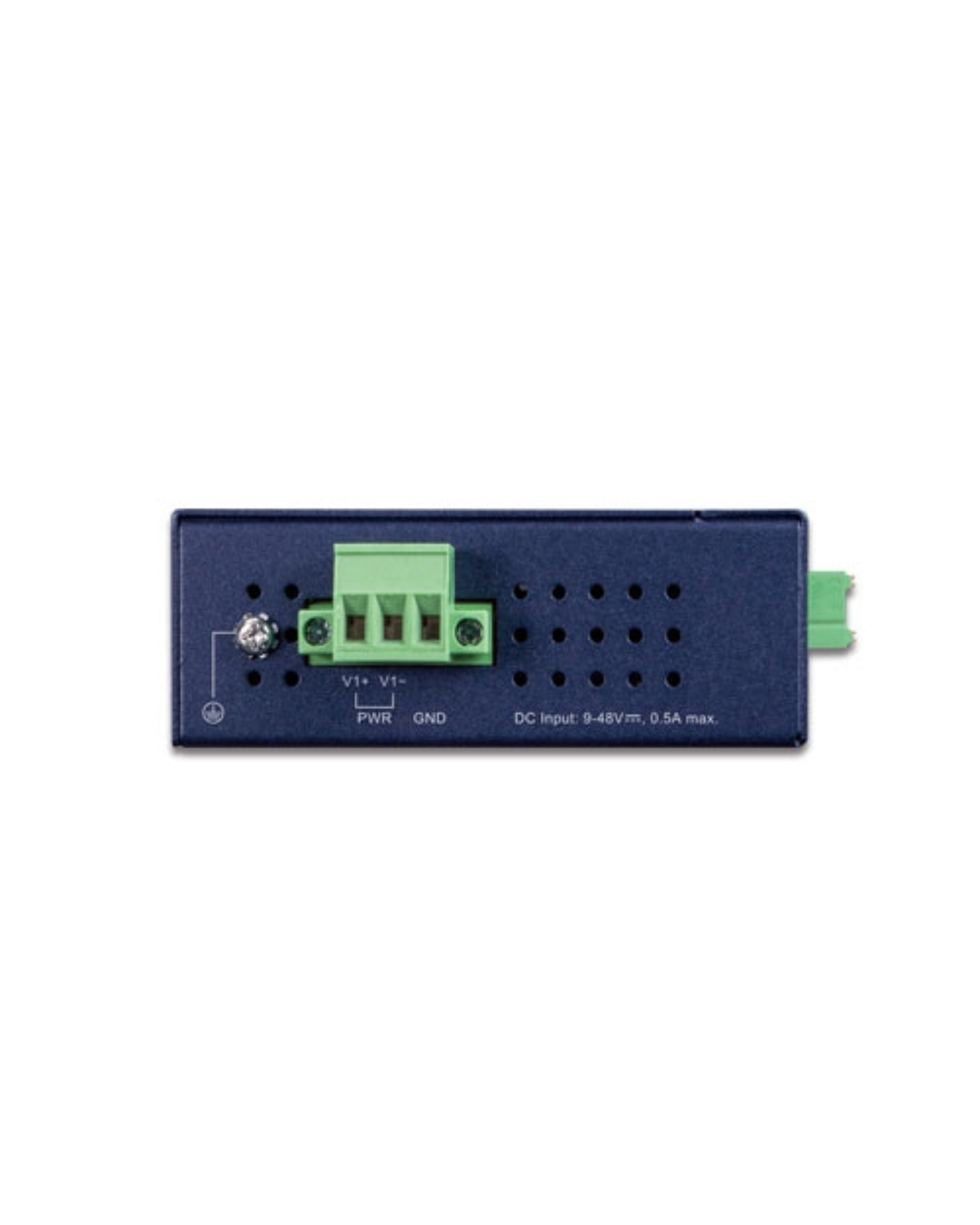

The IECS-1116-DO is equipped with one 3-pin DC power input connector with screws for power supply installation. With power magnetic protection design, it can avoid the device burnout due to wrong wiring. In addition, it also possesses an integrated power supply source with wide-ranging voltages (9 to 48V DC) for worldwide high availability applications.

Environmentally Hardened Design

With the IP40 metal industrial case, the IECS-1116-DO provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioning. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Being able to operate under the temperature range from -40 to 75 degrees C, the IECS-1116-DO can be placed in almost any difficult environment.

Industrial-grade EtherCAT Slave Module for Factory Automation

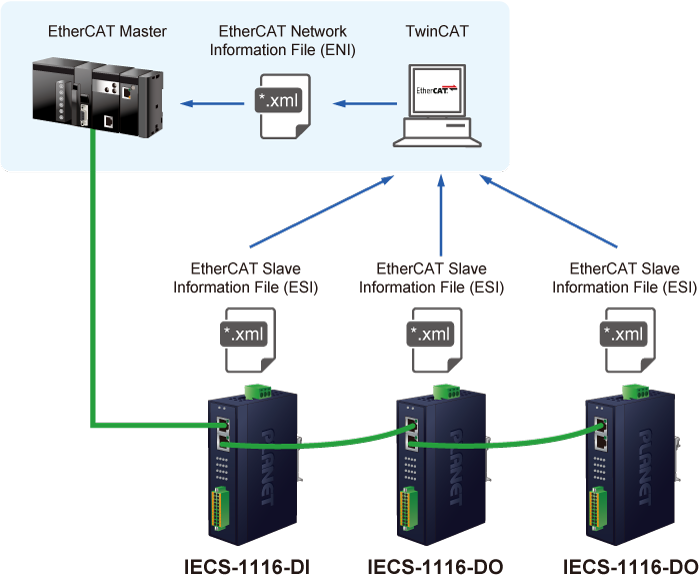

The IECS-1116-DO is an EtherCAT slave I/O module with isolated16-ch output for distributed industrial applications. Each module is equipped with high density I/O (up to 16 points) and powerful features in a compact size. DIN-rail design and daisy-chain wiring powered by EtherCAT technology make it easy to install the modules in the field. Besides, the IECS-1116-DO is able to provide a wide variety of I/O combinations with the IECS-1116-DI. With the standard ESI file, users can always find suitable I/O modules for their high-speed EtherCAT-based applications.

Key Specification

Digital Output
Channels	16
Output Type	Open collector (sink)
Load Voltage	3.5~50V
Max. Load Current	700 mA per channel
Photo Isolation	3750 VDC
Communication Interface
Connector	2 RJ45 ports
Protocol	EtherCAT
Distance between Stations	Max. 100m (100BASE-TX)
Data Transfer Medium	Ethernet/EtherCAT cable (min. cat5), shielded
Power
Input Voltage Range	9~48V DC
Power Consumption	4W max.
Mechanical
Dimensions (W × D × H)	32 × 87.8 × 135mm
Installation	DIN-rail and wall mounting
Case Material	IP40 metal
Environment
Operating Temperature	-40~75 °C
Storage Temperature	-40~75 °C
Relative Humidity	5~95% (non-condensing)
