Renewable Energy for Powering the Switch

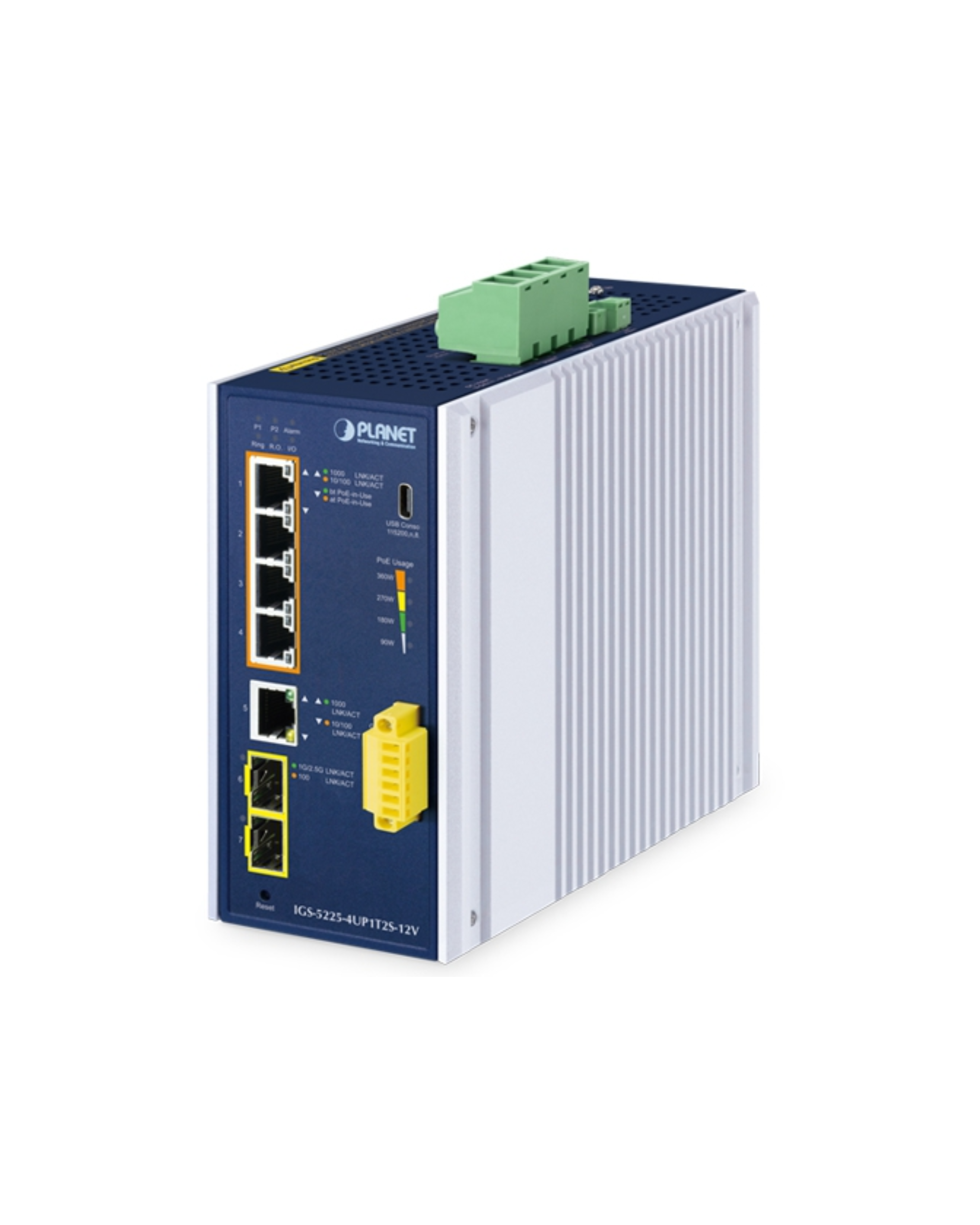

PLANET’s newly-launched Industrial Managed Ethernet Switch, the IGS-5225-4UP1T2S-12V, can be powered by the inexhaustible and natural source of energy, such as solar, wind and hydroelectric power to conserve energy so as to economically power these remote IP cameras and wireless APs.
Complying with the IEEE 802.3bt Power over Ethernet Plus Plus technology, PLANET’s improved IGS-5225-4UP1T2S-12V L2+ Industrial Managed PoE++ Switch features four 10/100/1000BASE-T 802.3bt PoE++ ports with each port powering up to 95 watts, one extra 10/100/1000BASE-T copper port and two 100/1000/2500BASE-X SFP interfaces in a rugged IP30 aluminum case for stable operation in heavy industrial environments.
The IGS-5225-4UP1T2S-12V adopts DC 9~48V power boost technology to solve power source issue but does not require special power supplies. It supports rich PoE operation modes including 95-watt 802.3bt type-4 PoE++ ports, 95-watt legacy mode and force mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field. With a total power budget of up to 360 watts with dual power input for different kinds of PoE applications, it is designed to efficiently handle power distribution for a versatile array of connected devices which meet the Environmental, Social, and Governance (ESG) principles. Leveraging cutting-edge IP-based technology, PLANET has transformed conventional Power Over Ethernet (PoE) into genuine network devices that align with sustainable and responsible business practices.

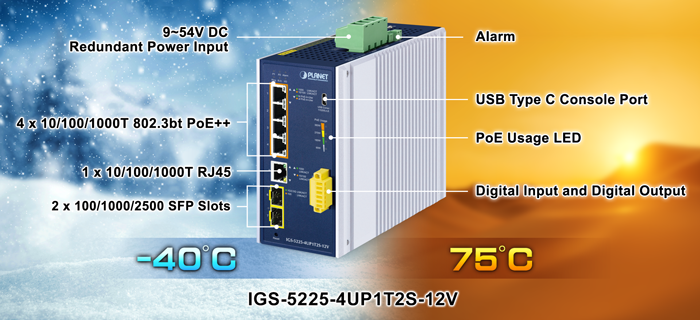

Being able to operate under wide temperature range from -40 to 75 degrees C, the IGS-5225-4UP1T2S-12V can be placed in almost any difficult environment. The IGS-5225-4UP1T2S-12V also allows either DIN-rail or wall mounting for efficient use of cabinet space.

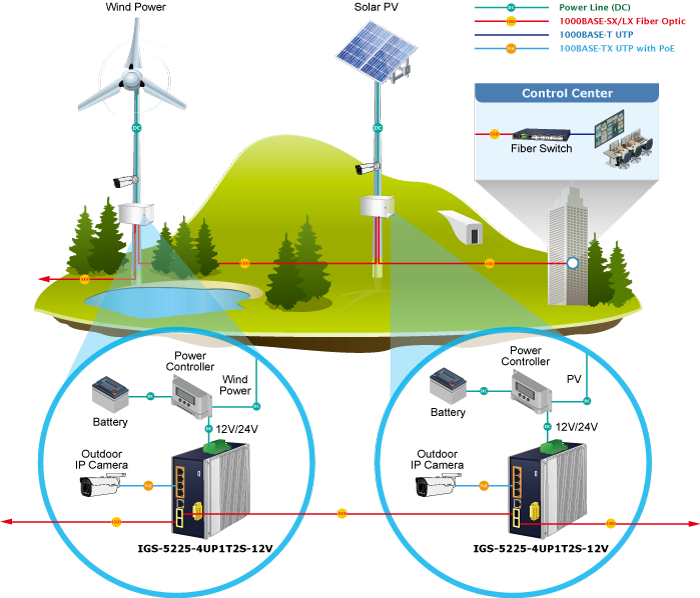

Wide Range of Power Input Suitable for Renewable Energy and Automotive Markets
The IGS-5225-4UP1T2S-12V industrial-grade managed switch is designed to deliver exceptional performance and versatility for a variety of industrial applications. With support for a wide DC power input range of 9-54V and a power boost of up to 54V, this switch ensures stable and reliable operation even in demanding environments. It also supports 802.3bt PoE++ with a maximum total power budget of 360W, making it ideal for powering high-demand devices such as IP cameras, Wi-Fi access points, and other networked equipment. Thanks to its excellent energy conversion efficiency, it reduces power loss and maximizes operational performance.
This switch, using solar, is a robust, energy-efficient solution for transportation markets. Furthermore, it complies with ESG (Environmental, Social, and Governance) standards, highlighting its commitment to sustainable practices and reducing environmental impact. More importantly, it can enhance system's efficiency and reliability, as well as support a greener, more responsible future.
802.3bt PoE++ 95-watt Power over 4-pair UTP Solution

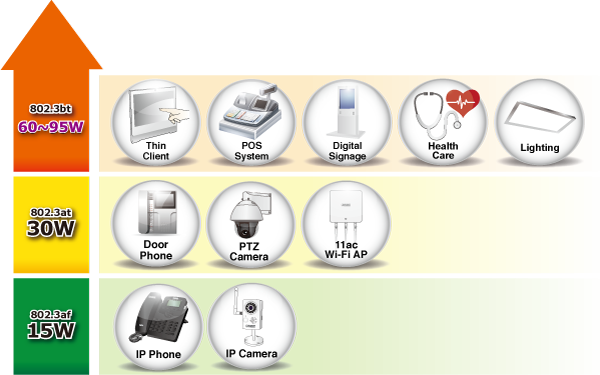

As the IGS-5225-4UP1T2S-12V adopts the IEEE 802.bt PoE++ standard technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). Its power capability is three times more than that of the conventional 802.3at PoE+ and it is an ideal solution for those high power consuming network PDs, such as:
- PoE PTZ speed dome cameras
- Network devices
- Thin clients
- AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
- Remote digital signage displays
- PoE lightings
802.3bt PoE++ and Advanced PoE Power Output Mode Management

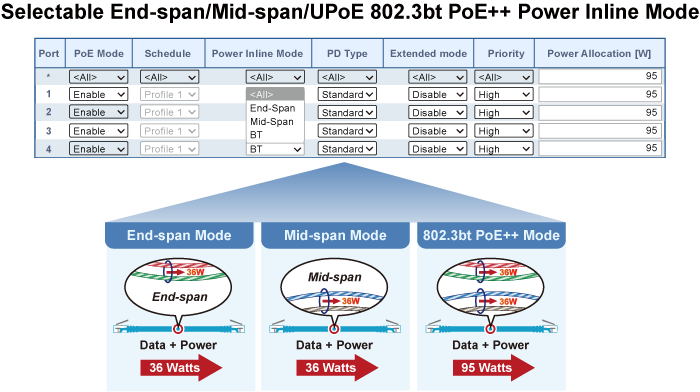

To meet the demand of various powered devices consuming stable PoE power, the IGS-5225-4UP1T2S-12V supports multi-PoE operation modes that include 95-watt 802.3bt type-4 PoE++ mode, 4-pair legacy and force modes to solve the incompatibility of non-standard 4-pair PoE PDs in the field.
- 95W 802.3bt PoE++ Power Output Mode
- 36W End-span 802.3at PoE+ Power Output Mode
- 36W Mid-span 802.3at PoE+ Power Output Mode
| PoE Watts |
PoE Operation Mode |
Power Output Mode |
| 95W |
802.3bt PoE++ |
Pins 1, 2, 3, 6 + Pins 4, 5, 7, 8 |
| 36W |
End-span 802.3at PoE |
Pins 1, 2, 3, 6 |
| 36W |
Mid-span 802.3at PoE |
Pins 4, 5, 7, 8 |

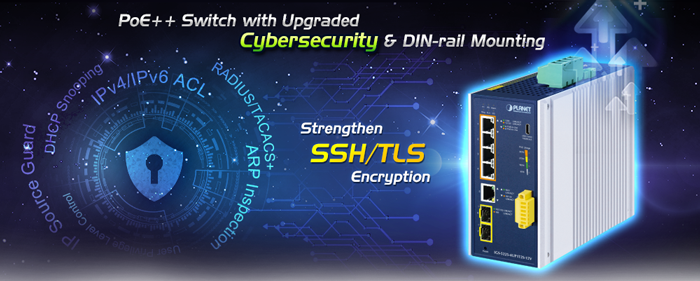

Cybersecurity Network Solution to Minimize Security Risks
The cybersecurity features that virtually need no effort and cost to have include the protection of the switch management and the enhanced security of the mission-critical network. Both SSHv2 and TLSv1.2 protocols are utilized to provide strong protection against advanced threats. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.
Redundant Ring, Fast Recovery for Critical Network Applications
The IGS-5225-4UP1T2S-12V supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments.
The IGS-5225-4UP1T2S-12V also protects customer’s industrial network connectivity with switching recovery capability that is used for implementing fault tolerant ring and mesh network architectures. If the Industrial network is interrupted accidentally, the fault recovery time could be as fast as 10ms to quickly bring the network back to normal operation.
Convenient and Smart ONVIF Devices with Detection Feature

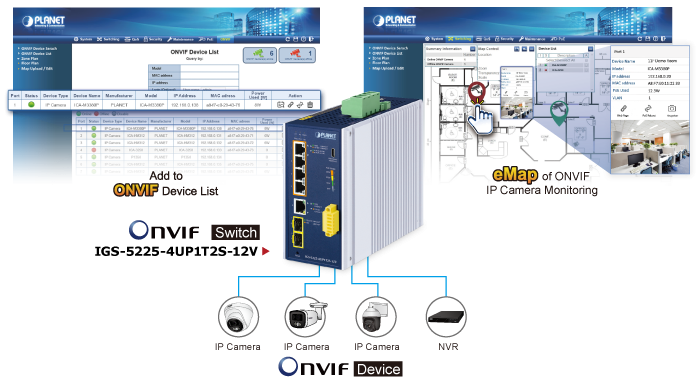

PLANET has developed an awesome feature -- ONVIF Support -- which is specifically designed for co-operating with video IP surveillances. From the IGS-5225-4UP1T2S-12V’s GUI, you just need one click to search and show all of the ONVIF devices via network application. In addition, you can upload floor images to the switch and can remotely monitor or inspect an assembly line. Moreover, you can get real-time surveillance information and online/offline status; the PoE reboot can be controlled from the GUI.
Built-in Unique PoE Functions for Powered Devices Management
As it is the managed PoE++ switch for surveillance, wireless and VoIP networks, the IGS-5225-4UP1T2S-12V features the following special PoE management functions:
- PD Alive Check
- Scheduled Power Recycling
- PoE Schedule
- PoE Usage Monitoring
- PoE Extension

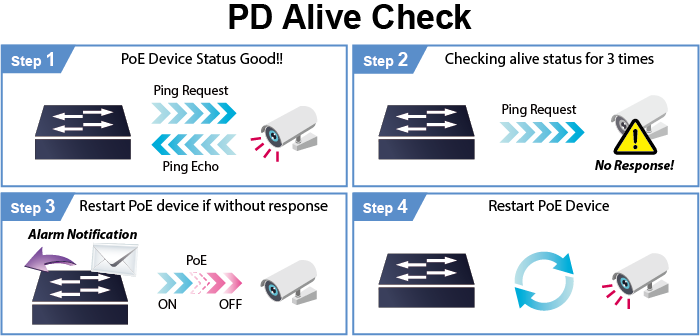

Intelligent Powered Device Alive Check
The IGS-5225-4UP1T2S-12V PoE++ Switch can be configured to monitor connected PD’s status in real time via ping action. Once the PD stops working and responding, the IGS-5225-4UP1T2S-12V will recycle the PoE port power and bring the PD back to work. It also greatly enhances the reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden.

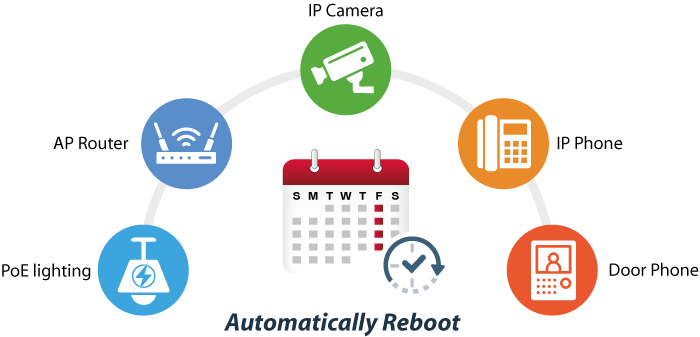

Scheduled Power Recycling
The IGS-5225-4UP1T2S-12V allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.

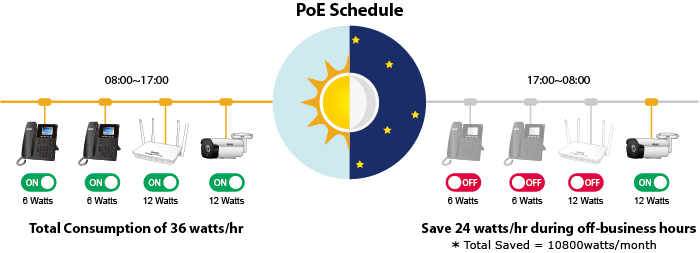

PoE Schedule for Energy Savings
Under the trend of energy savings worldwide and contributing to environmental protection on the Earth, the IGS-5225-4UP1T2S-12V can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money.
Intelligent LED Indicator for Real-time PoE Usage

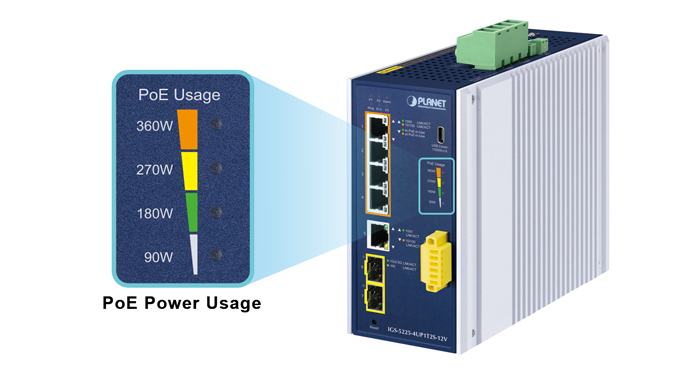

The IGS-5225-4UP1T2S-12V helps users to monitor the current status of PoE power usage easily and efficiently by means of its advanced LED indication. Called “PoE Power Usage”, the front panel of the IGS-5225-4UP1T2S-12V has four amber LEDs indicating 90W, 180W, 270W and 360W of PoE power usage.

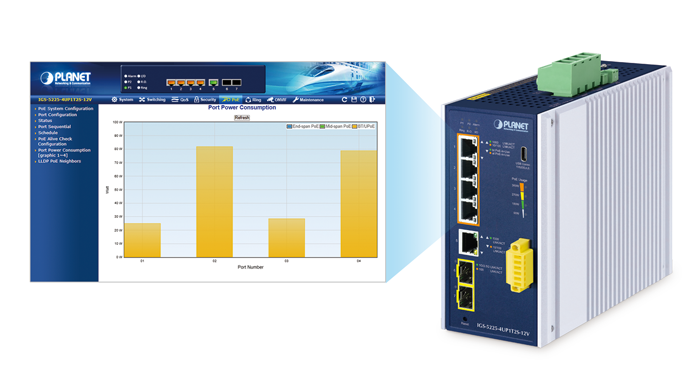

PoE Usage Monitoring
Via the power usage chart in the web management interface, the IGS-5225-4UP1T2S-12V enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities.
802.3at PoE+ Power and Ethernet Data Transmission Distance Extension

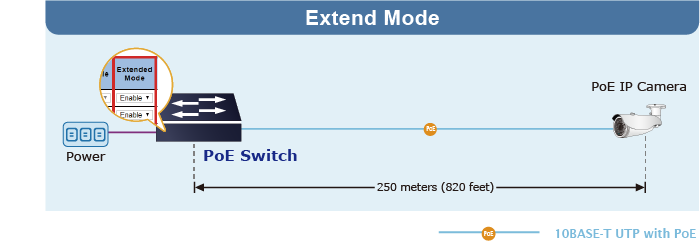

In the “Extend” operation mode, the IGS-5225-4UP1T2S-12V operates on a per-port basis at 10Mbps duplex operation but can support 50-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the IGS-5225-4UP1T2S-12V provides an additional solution for 802.3at PoE distance extension, thus saving the cost of Ethernet cable installation.

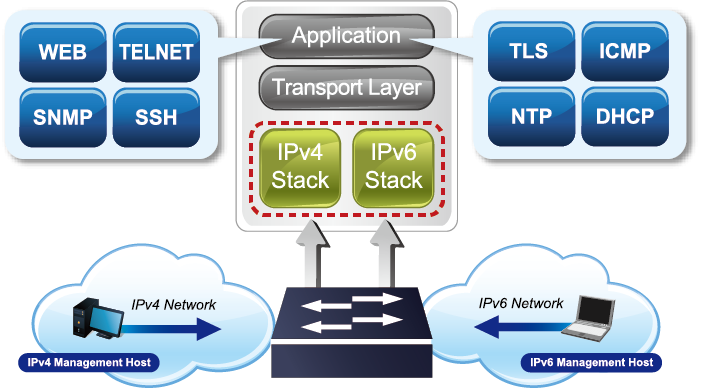

IPv6/IPv4 Dual Stack Management
Supporting both IPv6 and IPv4 protocols, the IGS-5225-4UP1T2S-12V helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.

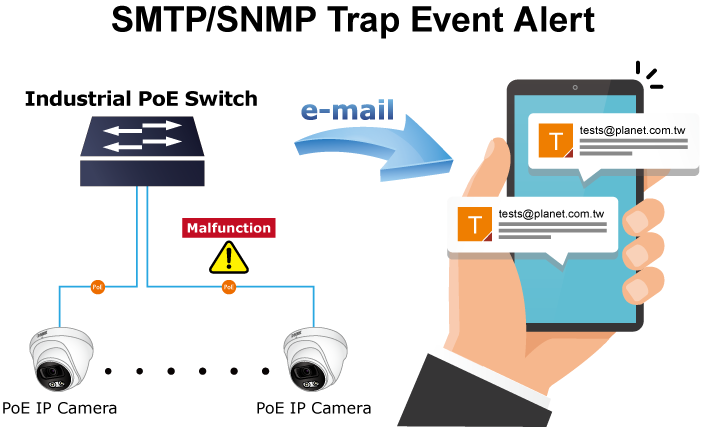

SMTP/SNMP Trap Event Alert
The IGS-5225-4UP1T2S-12V provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response.
Effective Alarm Alert for Better Protection

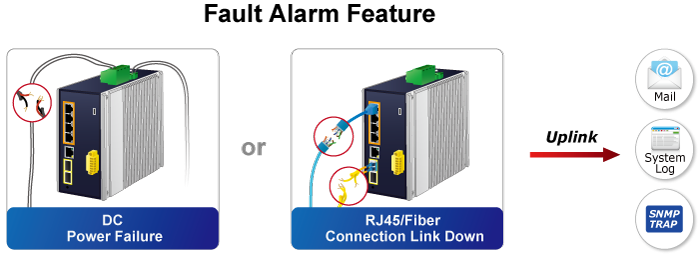

The IGS-5225-4UP1T2S-12V supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource.
Digital Input and Digital Output for External Alarm

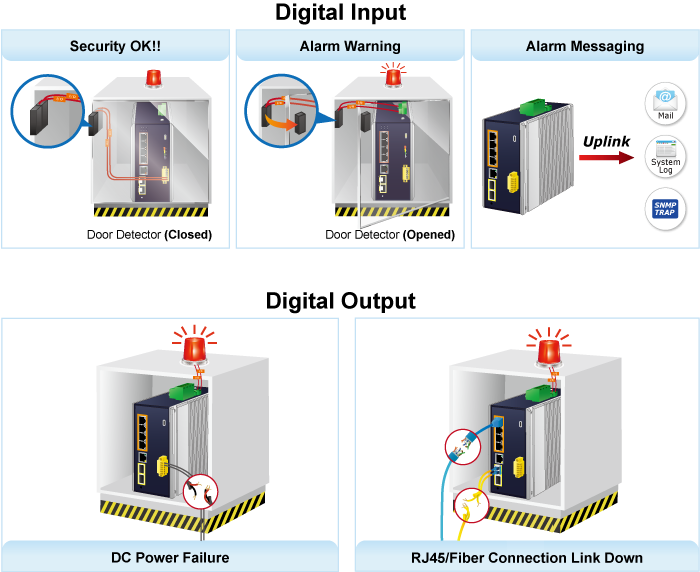

The IGS-5225-4UP1T2S-12V supports Digital Input and Digital Output on its upper panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-5225-4UP1T2S-12V port shows link down, link up or power failure.
Layer 3 IPv4 and IPv6 Software VLAN Routing for Secure and Flexible Management
To help customers stay on top of their businesses, the IGS-5225-4UP1T2S-12V not only provides ultra high transmission performance and excellent Layer 2 technologies, but also IPv4/IPv6 software VLAN routing feature which allows to crossover different VLANs and different IP addresses for the purpose of having a highly-secure, flexible management and simpler networking application.

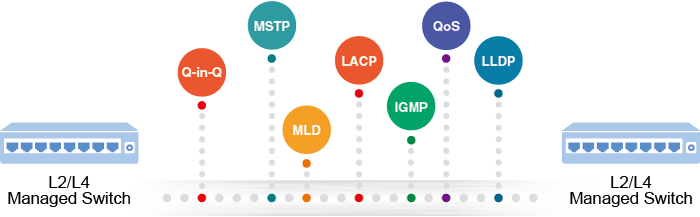

Robust Layer 2 Features
The IGS-5225-4UP1T2S-12V can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Rapid Spanning Tree Protocol, Layer 2 to Layer 4 QoS, bandwidth control and IGMP snooping. The IGS-5225-4UP1T2S-12V provides 802.1Q tagged VLAN, and the VLAN groups allowed will be maximally up to 4K. Via aggregation of supporting ports, the IGS-5225-4UP1T2S-12V allows the operation of a high-speed trunk combining multiple ports. It enables a maximum of up to 3 trunk groups with 7 ports per trunk group, and supports fail-over as well.
Powerful Security
The IGS-5225-4UP1T2S-12V offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.
Remote Management Solution
PLANET's Universal Network Management System (UNI-NMS) and CloudViewer app support IT staff by remotely managing all network devices and monitoring PDs' operational statuses. Thus, they're designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS or CloudViewer app, all kinds of businesses can now be speedily and efficiently managed from one platform.
Flexibility and Extension Solution
The additional two mini-GBIC slots built in the IGS-5225-4UP1T2S-12V support triple-speed 100/1000/2500BASE-X SFP (small form-factor pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to not only the transmission distance but also the transmission speed required. The distance can be extended from 300meters to 2km (multi-mode fiber) and to 10/20/30/40/60/70/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

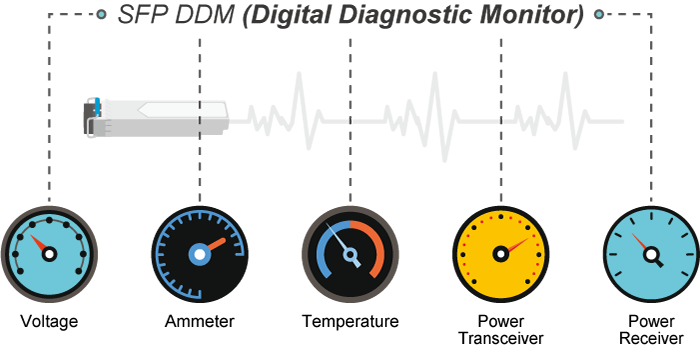

Intelligent SFP Diagnosis Mechanism
The IGS-5225-4UP1T2S-12V supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
Modbus TCP Provides Flexible Network Connectivity for Factory Automation
With the supported Modbus TCP/IP protocol, the IGS-5225-4UP1T2S-12V can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information and communication status, thus easily achieving enhanced monitoring and maintenance of the entire factory.

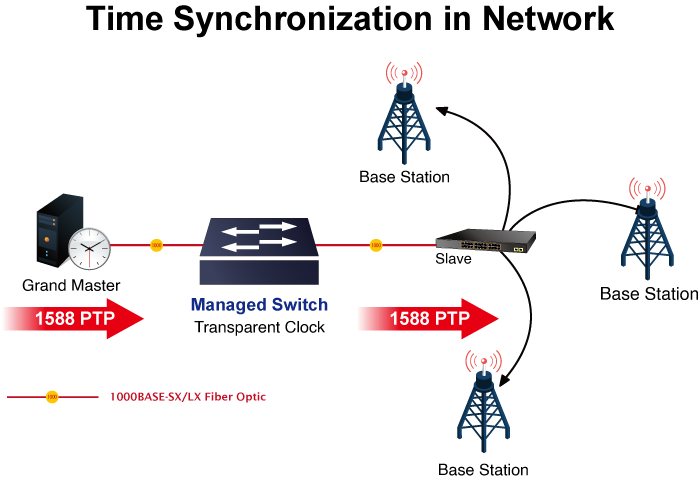

1588 Time Protocol for Industrial Computing Networks
The IGS-5225-4UP1T2S-12V is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.

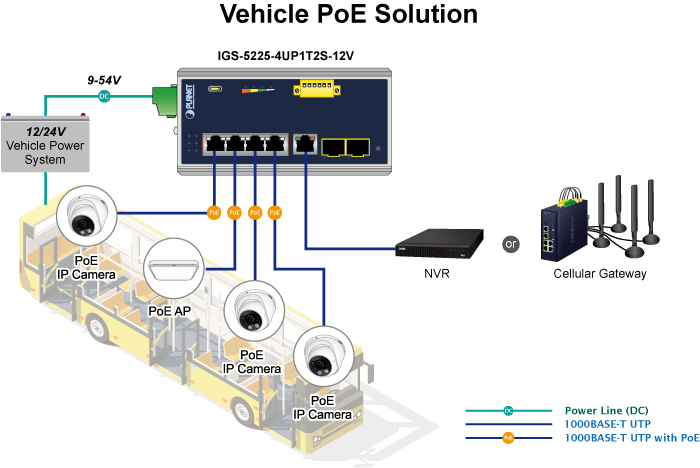

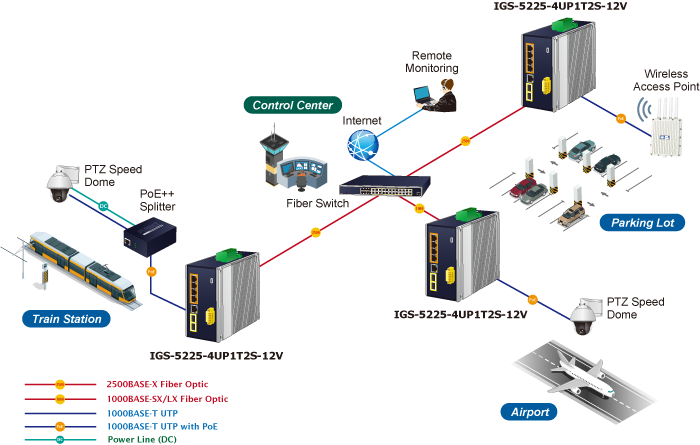

Gigabit 802.3bt PoE++ and PoE+ IP Surveillance and Wireless LAN Service in Public Transportation
With IEEE 802.3bt/802.3at Power over Ethernet standard, the IGS-5225-4UP1T2S-12V can directly connect with any third-party IEEE 802.3at/802.3bt compliant devices like PTZ (Pan, Tilt & Zoom) IP cameras, PTZ speed dome cameras, color touch-screen Voice over IP (VoIP) telephones, and multi-channel wireless LAN access points. Wireless LAN would be more efficient for the transportation station to provide high speed and wide area Internet services for travelers. With the PoE wireless LAN structure, the transportation authority gains benefits from less cost while providing better Internet services in wider areas for the travelers.

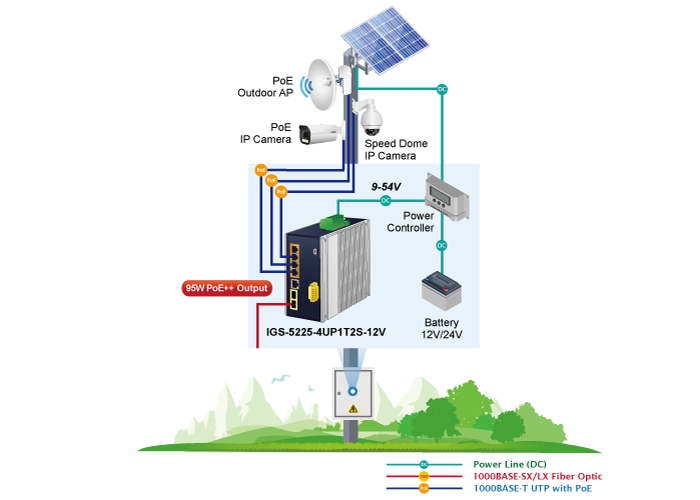

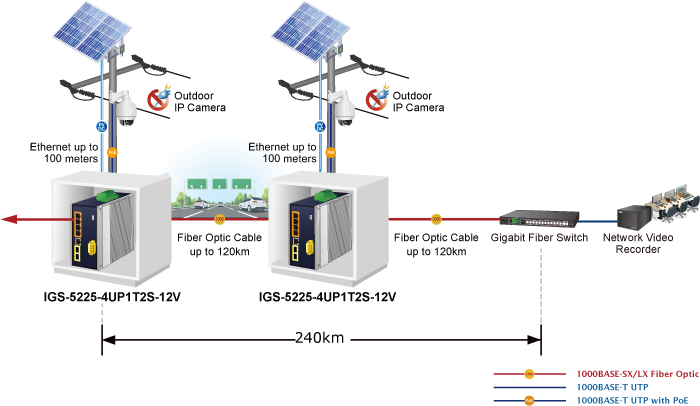

Solar-based 12V/24V Power Feed for Industrial Equipment Deployment
The IGS-5225-4UP1T2S-12V uses 9~54V DC power input, suitable for 12V/24V renewable energy applications, easily solving power problems, like electrical power supply.
With the 802.3bt PoE++ injector and 2.5GBASE-X SFP fiber ports, the IGS-5225-4UP1T2S-12V supplies power to other devices, such as IP phone, IP camera, or wireless AP where high-speed and stable data transmission can be made to a remote core network. It can extend the distance to a maximum of 120 kilometers between the IGS-5225-4UP1T2S-12V and control center via fiber-optic link.
